15247161

Part No 15247161
Manufacturer Molex, LLC
Catalog Rectangular Connectors

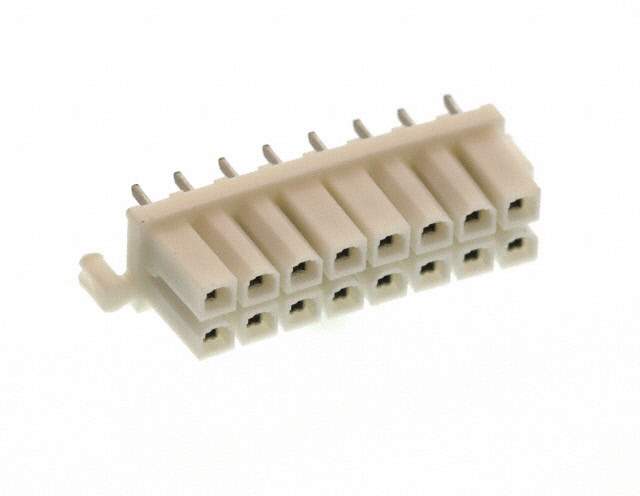

Description CONN RCPT 16POS 4.2MM VERT TIN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 4.20mm
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Insulation Color Natural
Insulation Height 0.446" (11.33mm)
Contact Length - Post 0.138" (3.50mm)
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Lock
Voltage Rating 600V
Applications General Purpose, Industrial, Medical, Telecommunications
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 197026-15247161
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 15247161 CAD Model

Description

Product Overview

The 15247161 is a versatile electronic component designed for a wide range of applications. With its robust functionality and dependable performance, it serves as a key element in any modern electronic project.

Features and Benefits

  • High reliability and durability ensuring long-term performance
  • Compact design optimized for space-constrained applications
  • Low power consumption enhancing energy efficiency

Applications

The 15247161 is suitable for use in:

  • Consumer electronics
  • Industrial automation systems
  • Embedded systems
  • IoT devices

Additional details about this component make it an ideal choice for engineers seeking optimal performance and cost-effectiveness in their designs.
