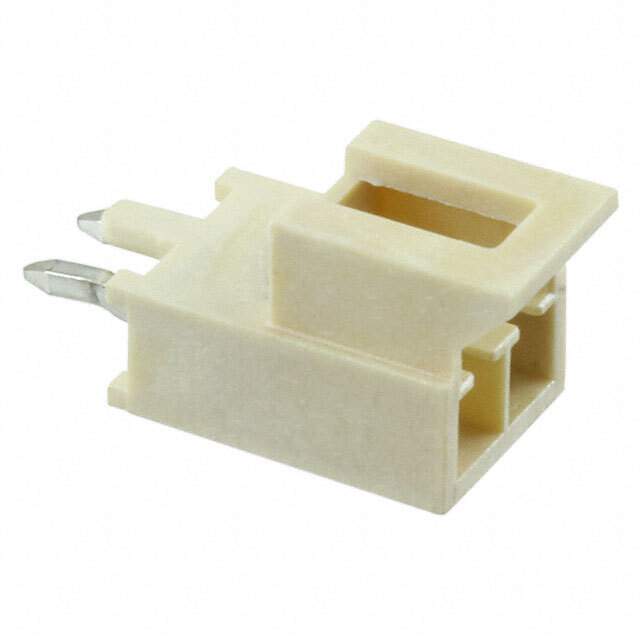

105309-2102

Name: 105309-2102
Brand: Molex, LLC
SKU: 1333028
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	105309-2102
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	NANOFIT HDR VT SGL KNK 2CKT TIN / Connector Header Through Hole 2 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Box
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Latch Holder
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.356" (9.05mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	59.0µin (1.50µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide
Temperature Range - Operating	-40°C ~ 105°C
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	250V
Mated Stacking Heights	21.30mm
Contact Finish Thickness - Post	59.0µin (1.50µm)
Applications	Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Base Product Number	105309
RoHS Status	ROHS3 Compliant
MSL Level	Vendor Undefined
REACH Status	REACH info available upon request
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	2266-105309-2102
Standard Package	1
Win Source Part Number	1333028-105309-2102
Ultra Librarian 3D Model	Ultra Librarian 105309-2102 CAD Model

Description

The 105309-2102 is a rectangular connector designed and manufactured by Molex.

Connector Type: Header
Positions Loaded: All positions
Pitch: 0.098" (2.50mm)
Temperature Range: -40°C ~ 105°C
