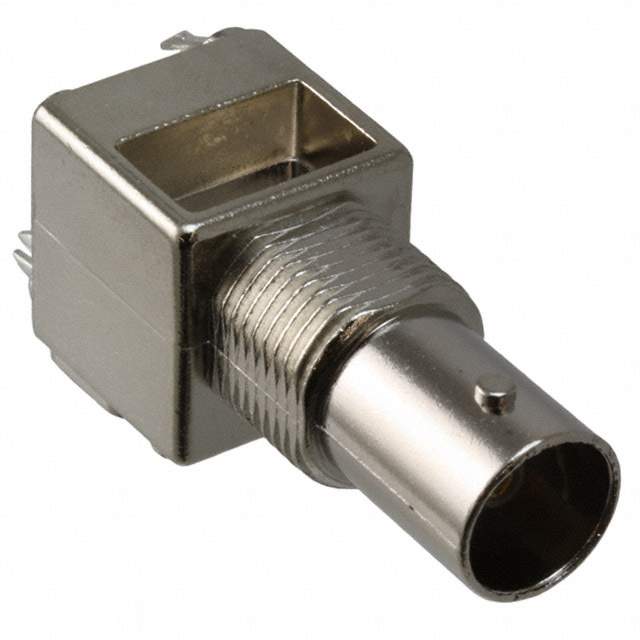

031-71045-1010 Real Image1 031-71045-1010 Real Image2
Same model may have multiple batches, images only for reference.
031-71045-1010 Real Image1 031-71045-1010 Real Image2
031-71045-1010 Real Image1 031-71045-1010 Real Image2
Same model may have multiple batches, images only for reference.

031-71045-1010

Part No 031-71045-1010
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN BNC JACK STR 75 OHM PCB
Datasheet
031-71045-1010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Tray
Status Active
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75 Ohm
Mounting Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Maximum Input Frequency 1GHz
Features Board Lock
Housing Color Silver
Body Material Zinc Die Cast
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -55°C to 85°C
Center Contact Material Phosphor Bronze
Voltage Rating 500V
Mating Cycles 500
Insertion Loss 0.2dB
Win Source Part Number 1092047-031-71045-1010
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 031-71045-1010 CAD Model

Description

The Amphenol RF Division 1092047-031-71045-1010 BNC Jack, Female Socket connector is a high-quality interconnect component ideal for a wide range of applications.

  • Fastening Type: Bayonet Lock
  • Mounting Feature: Bulkhead Front Side Nut
  • Body Material: Zinc Die-Cast
  • Body Finish: Nickel
  • Impedance: 75 Ohm
  • Voltage Rating: 500V
  • Insertion Loss: 0.2dB
  • Mounting Configuration: Panel Mount and Through-Hole
  • Contact Termination: Solder
