Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Mini50 34792
Package Tray
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock
Contact Length - Mating 0.218" (5.55mm)
Contact Length - Post 0.051" (1.30mm)
Overall Contact Length -
Insulation Height 0.575" (14.60mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Board Guide
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive
Base Product Number 034792
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 90 pcs
Win Source Part Number 1380772-0347920080
Ultra Librarian 3D Model Ultra Librarian 0347920080 CAD Model

Description

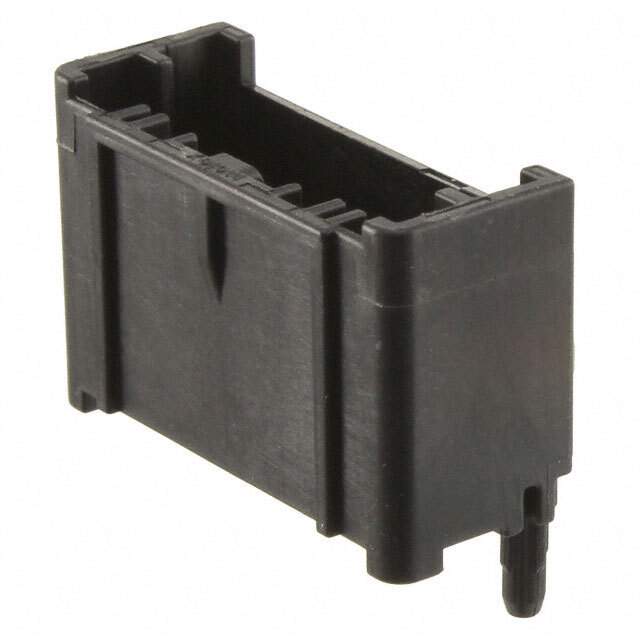

The Mini50 34792 series header is a high-quality connector designed for use in automotive applications.

  • Feature: Board Guide
  • Connection: For Male Blades
  • Positions: 8, Loaded
  • Rows: Single
  • Termination: Solder
  • Fastening: Latch Lock
  • Contact Material: Brass
  • Flammability Rating: UL94 V-0
  • Application: Board to Cable/Wire
  • Mating Pitch: 0.079" (2.00mm)
  • Contact Finish: Tin
  • Mounting: Through Hole
  • Package: 90 pcs
