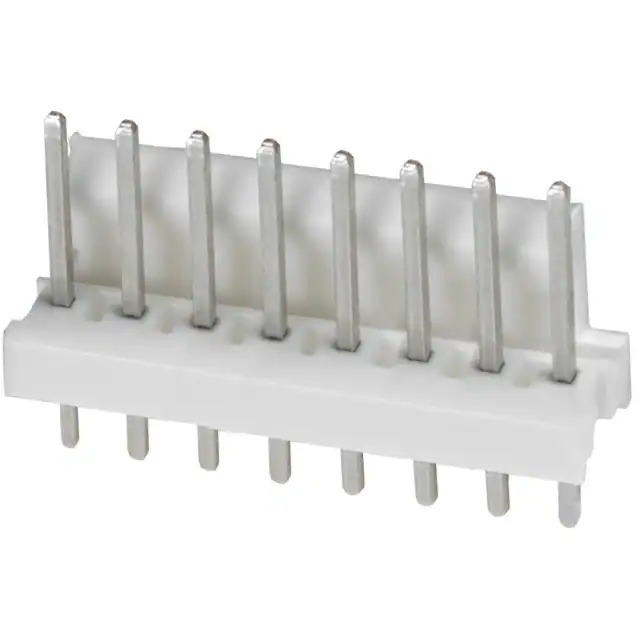

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series MTA-100
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 8
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type -
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.535" (13.59mm)
Insulation Height 0.305" (7.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features -
Temperature Range - Operating -55°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications General Purpose
Base Product Number 640454
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362615-640454-8
Ultra Librarian 3D Model Ultra Librarian 640454-8 CAD Model

Description

The TE Connectivity AMP Connectors MTA-100 series is a board-to-cable/wire header connector. It features a 0.100" (2.54mm) pitch mating, with 8 positions and 1 row.

  • Manufacturer: TE Connectivity AMP Connectors
  • Series: MTA-100
  • Connector Type: Board-to-Cable/Wire
  • Pitch Mating: 0.100" (2.54mm)
  • Number of Positions: 8
  • Number of Rows: 1
  • Design: Shrouded with 1 Wall
  • Current Rating: Varies by wire gauge
  • Voltage Rating: 250VAC
  • Contact Finish (Mating): Tin
  • Contact Finish (Post): Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Thermoplastic
  • Termination Type: Solder
  • Application: General-Purpose
