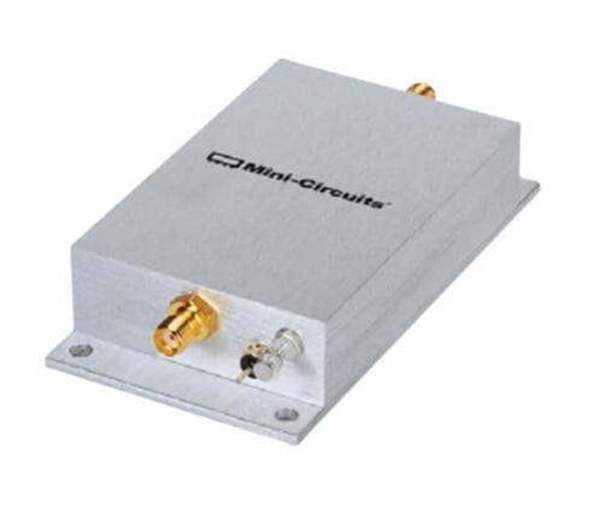

ZRL-3500+ Mini-Circuits
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tray
Product Status Active
Frequency 700MHz ~ 3.5GHz
P1dB 24dBm
Gain 17dB
Noise Figure 3.2dB
RF Type Cellular, GPS, GSM, PCS, UMTS, WLAN
Voltage - Supply 12V
Current - Supply 540mA
Test Frequency 700MHz ~ 3.5GHz
Grade -
Mounting Type Chassis Mount
Package / Case Module, SMA Connectors
Ultra Librarian 3D Model Ultra Librarian ZRL-3500+ CAD Model

Description

RF Amplifier IC Cellular, GPS, GSM, PCS, UMTS, WLAN 700MHz ~ 3.5GHz
