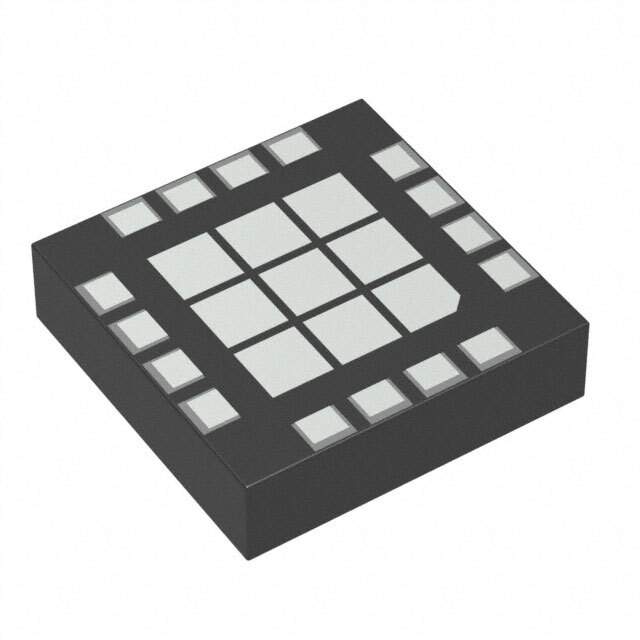

SKY66397-12 Real Image1 SKY66397-12 Real Image2
Same model may have multiple batches, images only for reference.
SKY66397-12 Real Image1 SKY66397-12 Real Image2
SKY66397-12 Real Image1 SKY66397-12 Real Image2
Same model may have multiple batches, images only for reference.

SKY66397-12

Part No SKY66397-12
Manufacturer Skyworks Solutions Inc.
Catalog RF Amplifiers
Description IC AMP LTE 2.3GHZ-2.7GHZ 16MCM / RF Amplifier IC LTE 2.3GHz ~ 2.7GHz 16-MCM (5x5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless>RF Amplifiers
Mfr Skyworks Solutions Inc.
Series -
Package Tape & Reel (TR)
Product Status Obsolete
Frequency 2.3GHz ~ 2.7GHz
P1dB 28dBm
Gain 37dB
Noise Figure -
RF Type LTE
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 95mA
Test Frequency 2.3GHz ~ 2.7GHz
Mounting Type Surface Mount
Package / Case 16-SMD Module
Supplier Device Package 16-MCM (5x5)
Base Product Number SKY66397
Moisture Sensitivity Level (MSL) 1 (Unlimited)
HTSUS 0000.00.0000
Standard Package 2,500 pcs
Win Source Part Number 1383460-SKY66397-12
Ultra Librarian 3D Model Ultra Librarian SKY66397-12 CAD Model

Description

The SKY66397-12 is an RF amplifier module designed for LTE applications. It operates @ a test frequency of 2.3GHz to 2.7GHz and offers a gain of 37dB.

  • Package: 16-SMD module package
  • Supplier Device Package: 16-MCM (5x5)
  • Manufacturer: Skyworks Solutions Inc.
  • Series: SKY66397
  • Mounting Type: Surface Mount
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
  • Standard Package: 2,500 pieces
  • Obsolete: Yes
  • Voltage Supply: 4.75V to 5.25V
  • Current Supply: 95mA
  • P1dB: 28dBm
