Same model may have multiple batches, images only for reference.

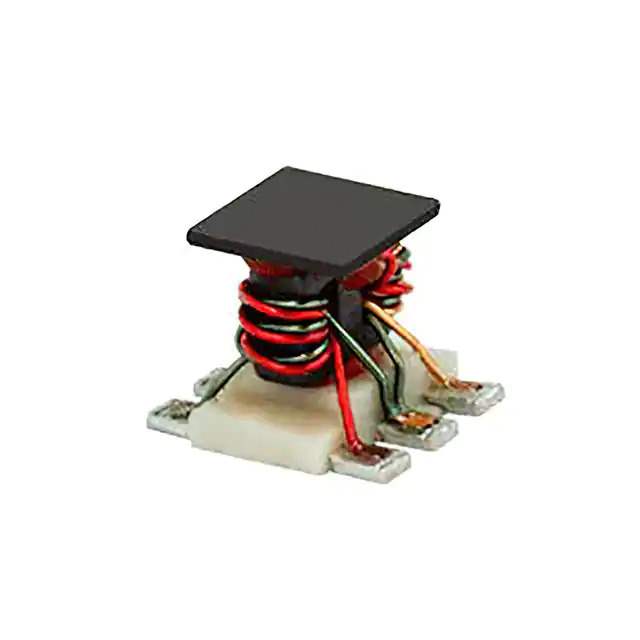

TCP-2-152-75X+ Real Image
Same model may have multiple batches, images only for reference.

TCP-2-152-75X+

Part No TCP-2-152-75X+
Manufacturer Mini-Circuits
Catalog RF Power Dividers/Splitters
Description RF PWR DVDR 5MHZ-1.5GHZ 6SMD
Datasheet
TCP-2-152-75X+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Insertion Loss 1.3dB
Frequency 5 MHz ~ 1.5 GHz
Specifications Isolation (Min) 22dB, 1.95 VSWR (Max), 6° Imbalance (Max)
Size / Dimension 0.150" L x 0.165" W (3.81mm x 4.19mm)
Package / Case 6-SMD, Flat Leads
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 899327-TCP-2-152-75X+
Ultra Librarian 3D Model Ultra Librarian TCP-2-152-75X+ CAD Model

Description

The 899327-TCP-2-152-75X+ is an RF power divider/splitter designed for use in RF and wireless applications.

  • Frequency Range: 5 MHz to 1.5 GHz
  • Isolation: 22dB (min)
  • VSWR: 1.95 (max)
  • Imbalance: 6 degrees (max)
  • Insertion Loss: 1.3dB
  • Package: 6-SMD with flat leads
  • Package Quantity: 2,000 pcs
  • Manufacturer: Mini-Circuits
  • Product Status: active
