Products specifications Report Issue?

Manufacturer Mini-Circuits
Category RF Misc ICs and Modules
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Output Frequency Range 10 MHz to 16 MHz
Mounting Style SMD/SMT
Packaging Cut Tape
Series SCPHS
Brand Mini-Circuits
Ultra Librarian 3D Model Ultra Librarian SCPHS-13.6+ CAD Model

Description

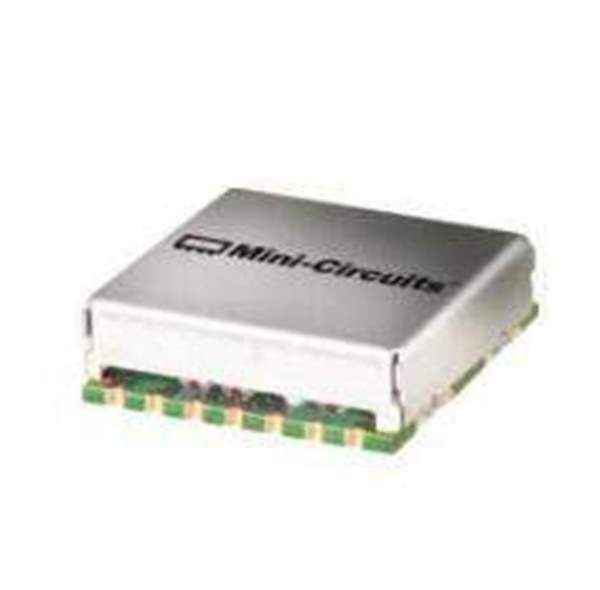

Mini-Circuits’ SCPHS-13.6+ is a voltage variable phase shifter providing 360°phase control from 10 to 16 MHz in a miniature surface mount package. This model has a control bandwidth of DC to 30 kHz and a control voltage range from 0 to +12V. Housed in a shielded, 14-lead package with wrap-around terminations, the unit measures only 0.87 x 0.80 x 0.25”, offering a space efficient, low-cost alternative to larger, expensive connectorized phase shifters typical for low frequency operation.
