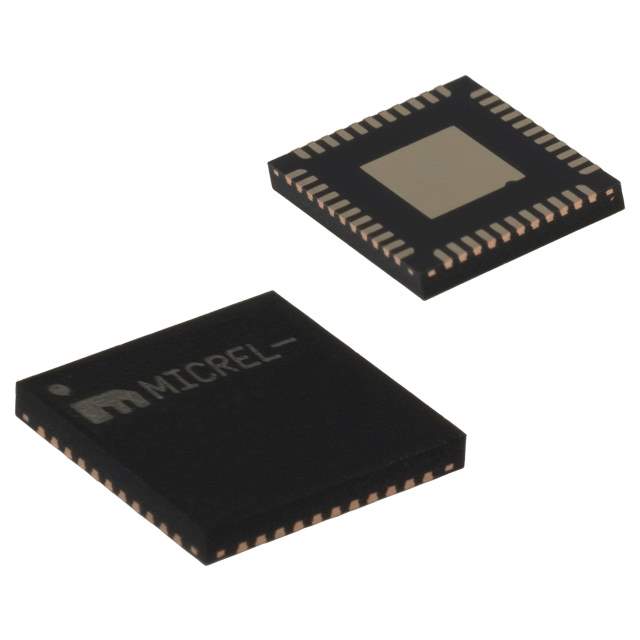

Product Overview: SY58040UMG from Microchip Technology
The SY58040UMG is a high-performance, 4x2.5Gbps differential crosspoint switch designed by Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. This advanced switch is part of Microchip's portfolio of clock and data distribution products and is tailored to meet the demanding requirements of high-speed signal routing.
Key Features
- High Bandwidth: The device supports data rates up to 2.5Gbps, making it suitable for a variety of high-speed applications such as backplane switching, signal routing in networking, and telecommunications equipment.
- Low Jitter Performance: With its excellent signal integrity, the SY58040UMG ensures minimal jitter, which is critical for maintaining the quality of high-speed data transmission.
- Flexible Operation: The crosspoint switch offers 4 differential inputs and 2 differential outputs, providing a versatile matrix of signal routing possibilities.
- Programmable Settings: Users can program the switch via a 3-wire serial interface, allowing for easy configuration and adjustments to meet specific system requirements.
- Power Efficiency: The device operates with a single 2.5V or 3.3V power supply, optimizing power consumption for energy-efficient designs.
Applications
The SY58040UMG is ideal for a range of applications that require reliable, high-speed signal processing and routing, including:
- Networking equipment such as routers, switches, and multiplexers
- Data center infrastructure
- High-performance computing systems
- Telecommunications equipment
- Test and measurement setups
Technical Specifications
Parameter
Value
Max Data Rate
2.5Gbps
Supply Voltage
2.5V or 3.3V
Operating Temperature Range
-40°C to +85°C
Package Type
32-lead MLF® (6mm x 6mm)
The SY58040UMG from Microchip Technology is an exceptional choice for designers looking to integrate a high-speed, low-jitter, and flexible crosspoint switch into their systems.
