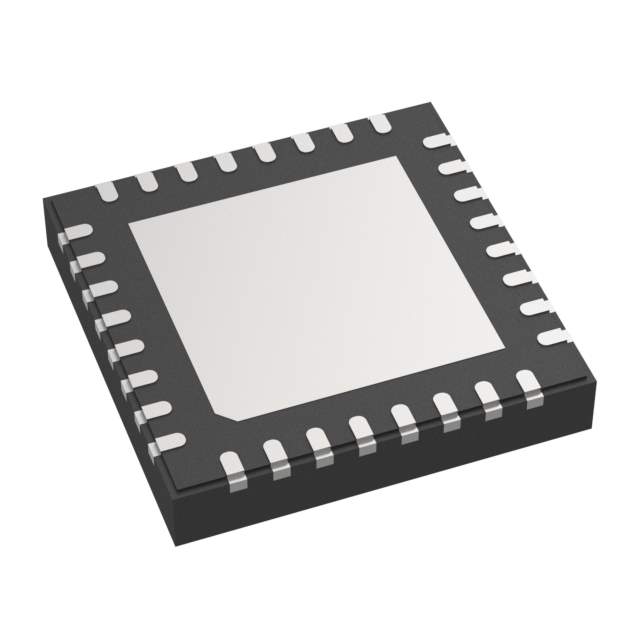

The LAN8670B1-E/LMX is a high-performance, small-footprint, single-port Ethernet physical layer transceiver (PHY) from the industry-leading manufacturer Microchip Technology. Designed for the fast-evolving demands of network connectivity, this device is perfect for applications that require reliable and efficient Ethernet communication.

Key Features

• High-Speed Ethernet: Supports 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet standards, enabling versatile use in a wide range of network environments.
• Energy Efficient: Incorporates Energy Efficient Ethernet (EEE) technology compliant with IEEE 802.3az, which significantly reduces power consumption during periods of low data activity.
• Robust Performance: Integrated cable diagnostics and link status change wake-up detect provide advanced features for system reliability and maintenance.
• Compact Design: Available in a compact form factor, making it ideal for space-constrained applications.
• Easy Integration: The device is designed for simple integration into various system designs, thanks to its industry-standard interfaces and small package size.

Applications

The LAN8670B1-E/LMX is suited for a diverse range of applications, including:

• Embedded systems
• Industrial automation
• Automotive infotainment and diagnostics
• Consumer electronics
• Networked home appliances

Technical Specifications

With support for RGMII (Reduced Gigabit Media Independent Interface), the LAN8670B1-E/LMX offers a streamlined interface for connecting to MAC (Media Access Control) layers in Gigabit Ethernet environments. The PHY also features Auto-MDIX support, accommodating both straight-through and crossover cable types without the need for manual switching.

Quality and Support

Microchip Technology is known for its commitment to quality and long-term customer support. The LAN8670B1-E/LMX is backed by Microchip's extensive technical support and documentation, ensuring that developers have access to the resources they need to successfully integrate the PHY into their products.

For more information on the LAN8670B1-E/LMX, including datasheets, technical resources, and ordering information, visit Microchip Technology's official website or contact your local Microchip sales representative.
