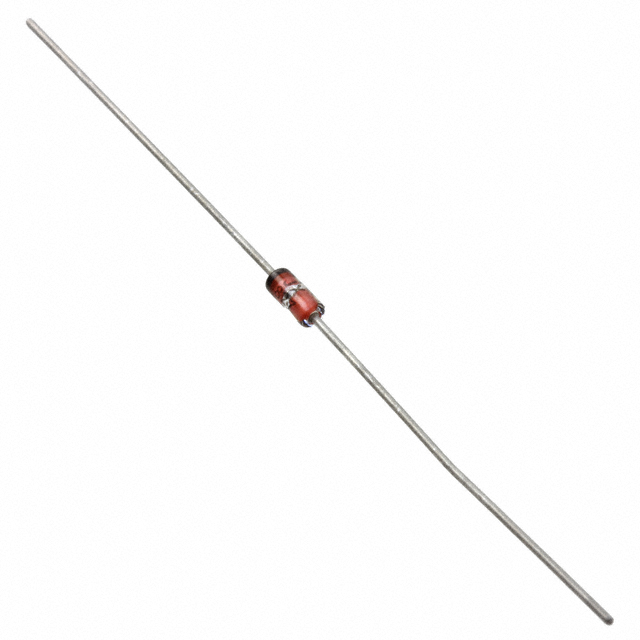

Same model may have multiple batches, images only for reference.
JANTXV1N4123-1 Microchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

JANTXV1N4123-1

Part No JANTXV1N4123-1
Manufacturer Microchip Technology
Catalog Diodes - Zener - Single
Description Zener Diode 39 V 500 mW ±5% Through Hole DO-204AH (DO-35)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Microchip Technology
Packaging Bulk
Voltage - Zener (Nom) (Vz) 39 V
Tolerance ±5%
Power - Max 500 mW
Impedance (Max) (Zzt) 200 Ohms
Current - Reverse Leakage @ Vr 10 nA @ 29.7 V
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 200 mA
Temperature Range - Operating -65°C ~ 175°C
Grade Military
Qualification MIL-PRF-19500/435
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package DO-204AH (DO-35)
Base Product Number 1N4123
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 1481912-JANTXV1N4123-1
Ultra Librarian 3D Model Ultra Librarian JANTXV1N4123-1 CAD Model
