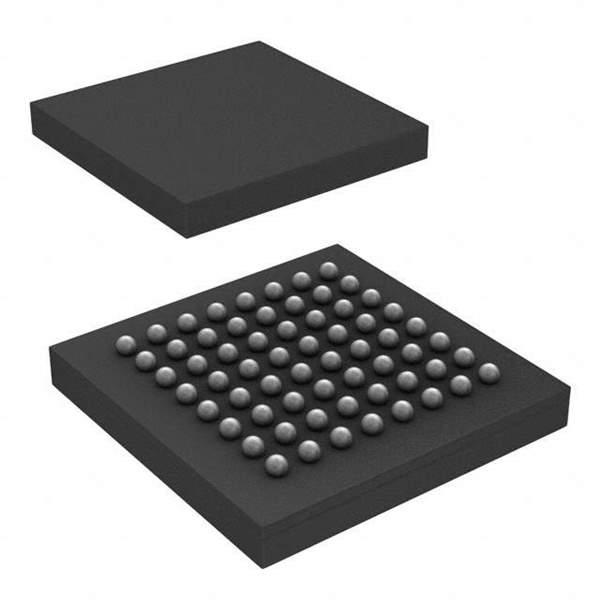

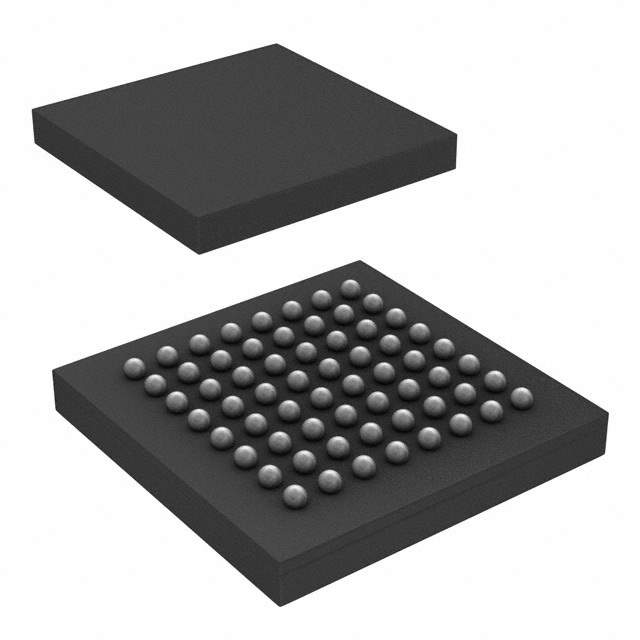

Microchip Technology ATSAMD20J18A-CU

The ATSAMD20J18A-CU is a high-performance, low-power microcontroller unit (MCU) from Microchip Technology, designed to cater to a wide range of applications within the industrial, consumer, and automotive sectors. This device is part of the SAM D20 family of microcontrollers which are based on the powerful ARM Cortex-M0+ processor, operating at a maximum frequency of 48MHz.

With 256KB of flash memory and 32KB of SRAM, the ATSAMD20J18A-CU provides ample storage for complex applications and software stacks. It also features 8KB of EEPROM, allowing for non-volatile storage of configuration data and parameters that must be preserved across power cycles.

One of the key features of this MCU is its rich set of peripherals. It includes multiple serial communication modules (SERCOM) that can be configured as UART, I2C, or SPI interfaces, making it highly flexible for various communication needs. Additionally, it offers a 12-bit ADC with up to 20 channels, a 10-bit DAC for analog output capabilities, and multiple timers/counters for precise event timing and PWM generation.

The ATSAMD20J18A-CU also supports touch sensing with its built-in hardware support for capacitive touch buttons, sliders, and wheels, which is a significant advantage for human-machine interface (HMI) applications. Its PTC (Peripheral Touch Controller) is designed to offer robust and reliable touch interfaces with minimal CPU overhead.

For safety-critical applications, the device includes features such as a Watchdog Timer, Brown-out Detector, and a Power-on Reset controller to ensure reliable operation. The MCU's power management options enable the design of energy-efficient applications, with idle and standby sleep modes to minimize power consumption when full CPU power is not required.

Offered in a 64-pin TQFP package, the ATSAMD20J18A-CU is suitable for space-constrained applications while still providing sufficient I/O lines for complex tasks. With its extensive feature set, this MCU is an excellent choice for designers looking to balance performance, power consumption, and peripheral flexibility.
