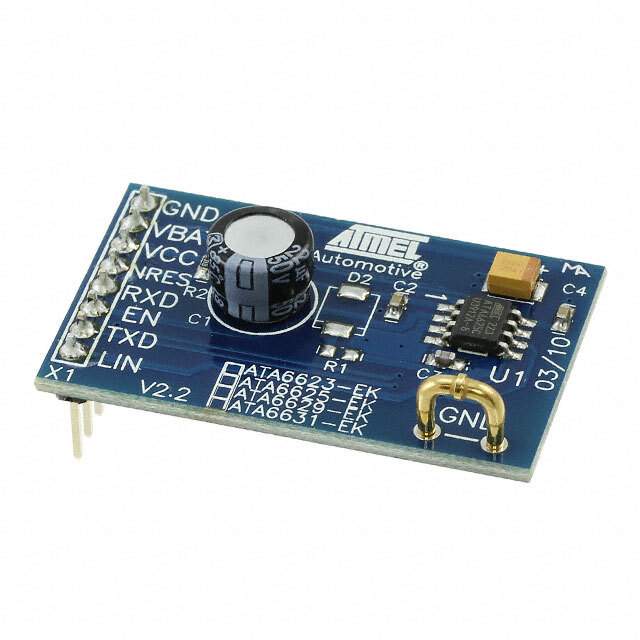

Microchip Technology ATA6625-EK Evaluation Kit

The Microchip Technology ATA6625-EK is a comprehensive evaluation kit designed to showcase the capabilities of the ATA6625 integrated circuit, which is a LIN system basis chip with a voltage regulator and watchdog. This evaluation kit is an essential tool for designers and engineers who wish to explore the features and performance of the ATA6625 in a LIN (Local Interconnect Network) bus system environment.

Key Features

• Integrated Voltage Regulator: The onboard voltage regulator provides a stable power supply with a broad input voltage range, making it suitable for automotive and industrial applications.
• Watchdog Functionality: The built-in watchdog timer ensures system reliability by monitoring the microcontroller and resetting it in case of a malfunction.
• Robust LIN Transceiver: The ATA6625 chip includes a LIN transceiver that meets LIN 2.0, 2.1, and SAE J2602 specifications, ensuring compatibility with a wide range of LIN networks.
• Low-Power Mode: The kit demonstrates the low-power capabilities of the ATA6625, which is critical for reducing power consumption in battery-operated systems.
• Temperature Range: The device operates over a wide temperature range, making it suitable for harsh environments typical in automotive applications.

Applications

The ATA6625-EK is ideal for development in automotive applications such as body control modules, sensor interfaces, and actuator controls. It is also well-suited for industrial automation systems that require robust communication links and low-power operation.

Development Support

The evaluation kit includes all necessary software and documentation to get started, including example applications and a user-friendly interface for testing various features of the ATA6625. Engineers can quickly integrate the chip into their designs and prototype applications, significantly reducing development time.

Overall, the ATA6625-EK from Microchip Technology is a versatile and powerful tool for any developer looking to harness the benefits of the ATA6625 LIN system basis chip in their next project.
