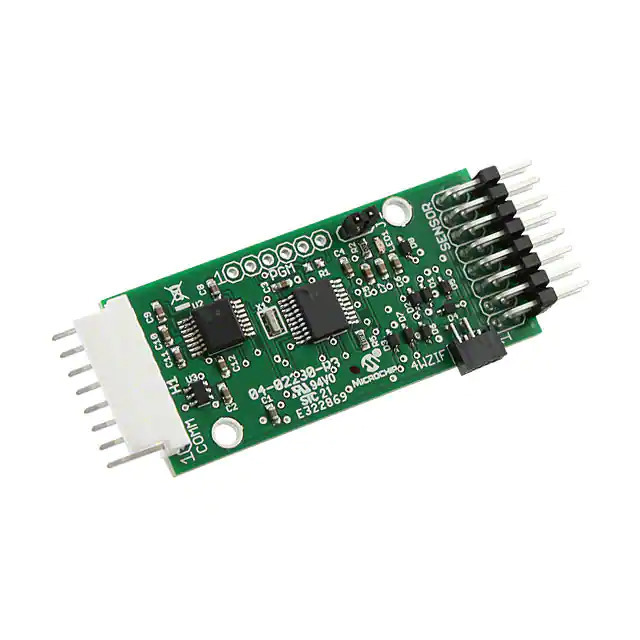

AR1100BRD

Part No AR1100BRD
Manufacturer Microchip Technology
Catalog Data Acquisition - Touch Screen Controllers
Description IC SCREEN CNTRL 10BIT MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Touch Screen Controllers
Mfr Microchip Technology
Series mTouch™
Package Bag
Product Status Active
Touchscreen 4, 5, or 8 Wire Resistive
Resolution (Bits) 10 b
Interface USB
Voltage Reference External
Voltage - Supply 3.3V ~ 5V
Current - Supply 25 mA
Temperature Range - Operating -25°C ~ 85°C
Mounting Type -
Package / Case Module
Supplier Device Package Module
Base Product Number AR1100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1366666-AR1100BRD
Ultra Librarian 3D Model Ultra Librarian AR1100BRD CAD Model

Description

The AR1100BRD from Microchip Technology is a sophisticated touch screen controller designed to offer high-performance user interface solutions for a wide range of applications. This versatile device is a perfect choice for developers looking to integrate touch capabilities into their designs with minimal hassle and maximum functionality.

The AR1100BRD works seamlessly with both resistive and capacitive touch panels, providing exceptional accuracy and responsiveness. It operates as a USB mouse or digitizer, making it universally compatible with most operating systems without the need for additional drivers. This plug-and-play functionality ensures that incorporating the AR1100BRD into your design is straightforward and efficient.

One of the key features of the AR1100BRD is its support for 4, 5, and 8-wire resistive touch screens, offering flexibility in choosing the right touch panel for your project. With its built-in calibration functionality, the device can be easily configured to match the specific dimensions and characteristics of your chosen touch screen, ensuring precise touch detection and a smooth user experience.

Microchip Technology has designed the AR1100BRD with robustness in mind. It includes advanced features such as noise immunity and drift compensation, which guarantee stable performance even in challenging environments. Whether used in industrial controls, point-of-sale systems, medical devices, or consumer electronics, the AR1100BRD maintains reliable touch functionality.

Developers will appreciate the AR1100BRD's programmable options, which include adjustable touch coordinates and USB report rates. These features provide the versatility needed to customize the touch interface to a specific application's requirements. Moreover, the AR1100BRD is supported by Microchip's comprehensive software suite, further simplifying the development process.

As a testament to its quality and reliability, the AR1100BRD is backed by Microchip Technology's commitment to customer satisfaction. With this touch screen controller, designers and engineers can confidently create user interfaces that are both intuitive and engaging, enhancing the overall user experience of their products.
