Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Microchip Technology
Package Tube
Product Status Active
Diode Configuration 2 Independent
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 100A
Voltage - Forward (Vf) (Max) @ If 3 V @ 100 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 385 ns
Current - Reverse Leakage @ Vr 100 µA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Chassis Mount

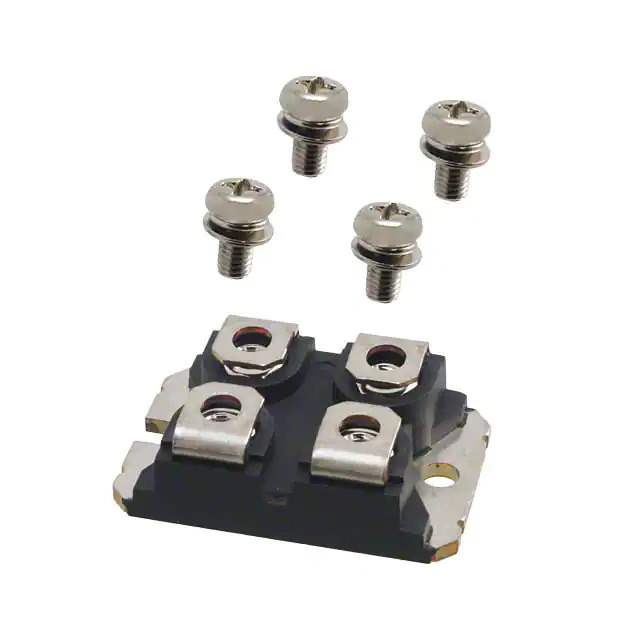

Package / Case SOT-227-4, miniBLOC
Supplier Device Package ISOTOP®
Base Product Number APT2X101
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 564011-APT2X101DQ120J
Ultra Librarian 3D Model Ultra Librarian APT2X101DQ120J CAD Model

Description

Microchip Technology's APT2X101DQ120J Power MOSFET

The APT2X101DQ120J is a state-of-the-art power MOSFET from Microchip Technology, designed to deliver exceptional performance for a wide range of applications. This device is part of Microchip's extensive portfolio of power management solutions, known for their reliability and efficiency. The APT2X101DQ120J is particularly well-suited for high voltage and high-speed switching applications.

Key Features

  • Low On-Resistance: The APT2X101DQ120J boasts an exceptionally low on-resistance, which minimizes conduction losses and enhances overall efficiency. This feature is crucial for applications that require high current handling capabilities.
  • High Voltage Rating: With a drain-to-source voltage (V<sub>DS) of 1200V, this MOSFET can handle high voltage applications, making it ideal for power supplies, converters, and motor drives.
  • Fast Switching Speed: The device is designed for fast switching, reducing switching losses and improving performance in high-frequency circuits.
  • Ruggedness: The APT2X101DQ120J is engineered to withstand harsh conditions, ensuring long-term reliability and stability in demanding environments.
  • TO-247 Package: Housed in a TO-247 package, the MOSFET ensures excellent heat dissipation and ease of mounting on a variety of heat sinks, which is critical for maintaining thermal stability during operation.

Applications

The versatility of the APT2X101DQ120J makes it suitable for a broad array of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • Uninterruptible Power Supplies (UPS)
  • Power Factor Correction (PFC) circuits
  • Motor Drives
  • Inductive Heating
  • High Voltage DC-DC Converters

Microchip Technology's APT2X101DQ120J is a robust and efficient solution for designers looking to enhance the performance of their power management systems. Its combination of low on-resistance, high voltage capability, and fast switching speed makes it an excellent choice for high-performance applications that demand the best in power MOSFET technology.
