Maxim Integrated MAX4940ACTN+ High-Speed, Quad, SPST Analog Switch

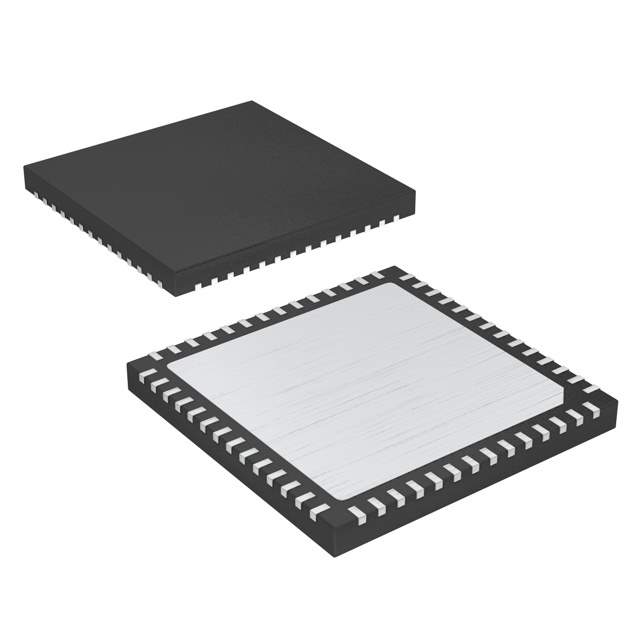

The MAX4940ACTN+ from Maxim Integrated is a high-performance, quad, single-pole single-throw (SPST) analog switch designed to deliver exceptional signal integrity and speed for a wide range of applications. This device is particularly well-suited for high-frequency signal routing, thanks to its low on-resistance and high off-isolation characteristics. The MAX4940ACTN+ is housed in a compact 56-pin TQFN package, making it an excellent choice for space-constrained designs.

With its capability to operate over a wide voltage range of 2.7V to 11V, or ±2.7V to ±5.5V, the MAX4940ACTN+ offers designers flexibility in various power supply scenarios. The switch's single-supply operation is particularly beneficial for portable and battery-powered devices, where power efficiency is crucial. The device also features fast switching speeds (tON = 20ns max, tOFF = 15ns max), which are essential for high-speed data acquisition systems and communication equipment.

The MAX4940ACTN+ boasts an exceptionally low distortion performance, with total harmonic distortion plus noise (THD+N) of 0.002% typical, making it an ideal switch for audio and video signal routing. Its high off-isolation of -60dB at 50MHz ensures minimal crosstalk between channels, which is critical for maintaining signal integrity in multiplexed signal environments.

Additionally, the device includes a unique feature: a patented charge-pump circuitry that eliminates the need for external level-shifting components and simplifies the design process. This integrated charge pump ensures that the switch's on-resistance remains flat over the entire analog signal range, providing consistent performance regardless of the input signal level.

For applications requiring precise signal routing with minimal distortion and crosstalk, such as test equipment, communication systems, and audio/video signal processing, the MAX4940ACTN+ from Maxim Integrated is a high-quality and reliable choice. Its combination of speed, low on-resistance, and high off-isolation makes it a versatile component for any high-performance analog switching application.
