Maxim Integrated MAX4901EBL+T - Compact and Efficient Analog Switch

The MAX4901EBL+T from Maxim Integrated is a high-performance, low-voltage, single-pole/double-throw (SPDT) analog switch that offers a compact and power-efficient solution for a wide range of applications. This tiny, lead-free component is designed for space-constrained systems where size and power consumption are critical considerations.

Key Features

• Low Voltage Operation: The switch operates at a low voltage range of 1.6V to 3.6V, making it suitable for battery-powered devices and portable applications.
• High Bandwidth: With a high bandwidth of 300MHz, the MAX4901EBL+T ensures minimal signal distortion and is ideal for audio and video signal routing.
• Low On-Resistance: The device features a low on-resistance (0.5Ω typical), which reduces power loss and improves signal integrity.
• Single-Supply Operation: The ability to operate on a single power supply simplifies circuit design and reduces component count.

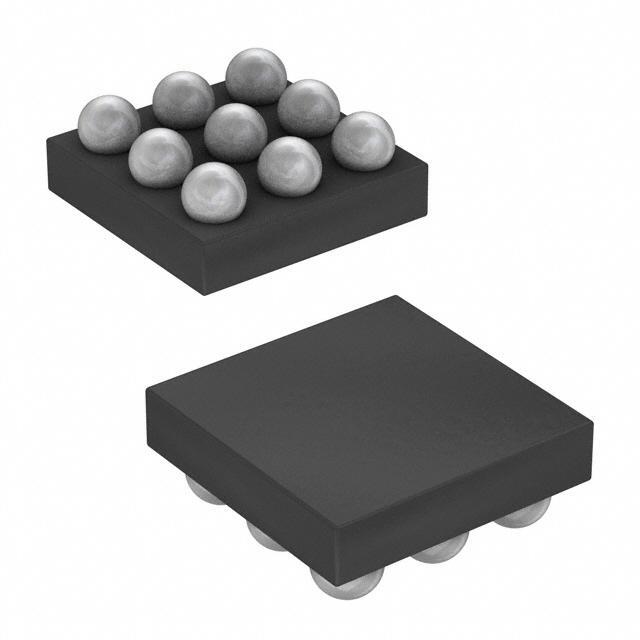

• Compact Package: It comes in a tiny, 9-bump UCSP (ultra chip-scale package) that occupies minimal board space, making it perfect for space-constrained applications.
• Lead-Free: The MAX4901EBL+T is lead-free and RoHS compliant, meeting environmental standards and ensuring suitability for use in a wide range of markets.

Applications

The versatility of the MAX4901EBL+T allows it to be utilized in various applications, including but not limited to:

• Mobile phones
• Portable media players
• Audio and video signal routing
• Notebook computers
• Low-voltage data-acquisition systems

Maxim Integrated's commitment to innovation is evident in the MAX4901EBL+T, offering designers a reliable and efficient solution for switching analog signals in compact electronic devices. Its low power consumption, coupled with high-speed performance, makes it an excellent choice for modern, power-sensitive applications.

With the MAX4901EBL+T, Maxim Integrated continues to push the boundaries of analog switch technology, providing a switch that is not only space-saving but also energy-efficient, without compromising on performance.
