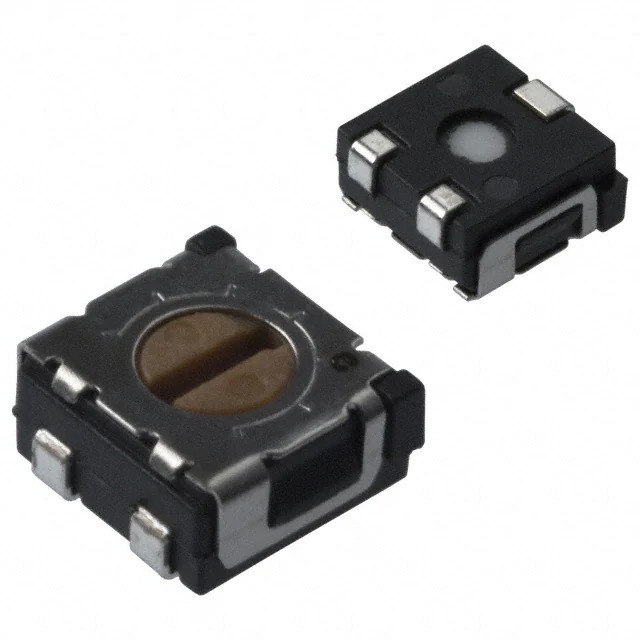

ST-4ETA503 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

ST-4ETA503

Part No ST-4ETA503
Manufacturer Nidec Copal Electronics
Catalog Trimmer Potentiometers
Description TRIMMER 50K OHM 0.25W J LEAD TOP
Datasheet
ST-4ETA503 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Nidec Components Corporation
Series ST4
Package Tape & Reel
Product Status Active
Resistance 50 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm)
Base Product Number ST4ETA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1375007-ST-4ETA503
Ultra Librarian 3D Model Ultra Librarian ST-4ETA503 CAD Model

Description

The 1375007-ST-4ETA503 is a surface mount trimmer potentiometer from Nidec Components Corporation's ST4 series.

  • Resistance (Ohms): 50 kOhms
  • Tolerance: ±20%
  • Adjustment Type: Top Adjustment
  • Size / Dimension: Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm)
  • Mounting Type: Surface Mount
  • Power (Watts): 0.25W (1/4W)
  • Termination Style: J Lead
  • Number of Turns: Single Turn
  • Resistive Material: Cermet
  • Temperature Coefficient: ±100ppm/°C
