Products specifications Report Issue?

Manufacturer Maxim Integrated
Packaging Tray
Part Status Obsolete (End Of Life)
Type Laser Diode Driver (Fiber Optic)
Data Rate 2.5Gbps
Number of Channels 2
Supply Voltage (V) 3.14V ~ 5.5V
Current - Supply 64mA
Current - Modulation 60mA
Current - Bias 100mA
Temperature Range - Operating -40°C ~ 85°C

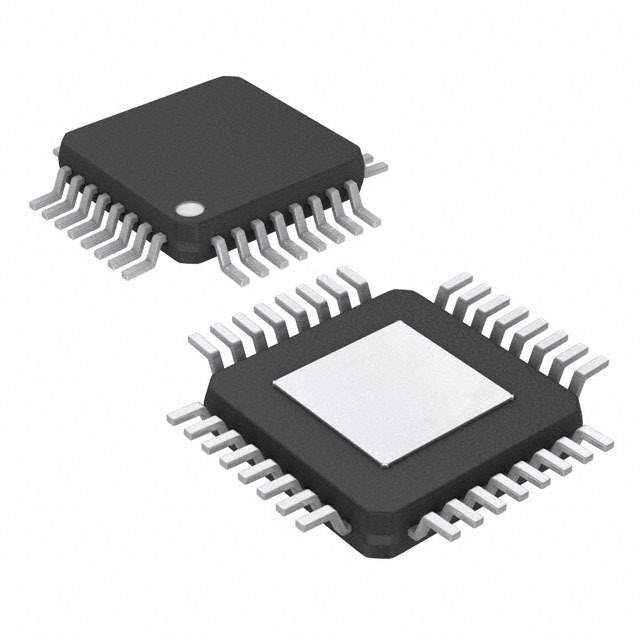

Manufacturer Package 32-TQFP Exposed Pad
Supplier Device Package 32-TQFP-EP (5x5)
Mounting Style SMD
Part Number Series MAX3869
Manufacturer Pack Quantity 360
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810433-MAX3869EHJ
Ultra Librarian 3D Model Ultra Librarian MAX3869EHJ CAD Model

Description

Maxim Integrated's MAX3869EHJ: High-Speed Laser Diode Driver

The MAX3869EHJ from Maxim Integrated is a high-performance, compact, and efficient laser diode driver designed for use in fiber optic communication systems. This versatile integrated circuit (IC) is particularly well-suited for applications requiring high-speed data transmission, such as Gigabit Ethernet, Fibre Channel, and other high-speed data links.

With its ability to deliver modulation currents up to 85mA and bias currents up to 100mA, the MAX3869EHJ is capable of driving a wide range of laser diodes. The IC operates over a supply voltage range of 3.0V to 5.5V, making it compatible with a variety of power systems and ensuring ease of integration into existing designs.

One of the key features of the MAX3869EHJ is its automatic power control (APC) loop, which stabilizes the laser diode power output against variations in temperature and aging. This ensures consistent performance and reliability over the product's lifespan. Additionally, the IC offers an automatic shutdown feature that protects the laser diode from overcurrent conditions, enhancing the safety and durability of the system.

The MAX3869EHJ comes in a compact 32-pin TQFP (Thin Quad Flat Pack) package, which is ideal for space-constrained applications. Its small footprint allows for high-density mounting and contributes to the miniaturization of the end product. Moreover, the IC's high-speed operation of up to 2.7Gbps supports the growing demand for faster data transmission rates in modern communication networks.

Designers will appreciate the flexibility offered by the MAX3869EHJ, as it includes both differential PECL data inputs and single-ended TTL inputs. This feature allows for easy interfacing with a variety of other ICs and systems. Furthermore, the device includes a loss-of-power indicator, which provides a fail-safe mechanism for system monitoring and diagnostics.

In summary, the MAX3869EHJ from Maxim Integrated is a highly reliable and efficient solution for driving laser diodes in high-speed optical communication systems. Its blend of performance, integration, and safety features make it an excellent choice for designers looking to enhance their data transmission capabilities.
