Maxim Integrated MAX3395EETC+ Transceiver Overview

The MAX3395EETC+ is a versatile, high-performance level translator manufactured by Maxim Integrated. Designed to facilitate communication between devices operating at different voltage levels, this bidirectional transceiver is particularly suitable for applications that require the translation of signals between low-voltage and high-voltage systems.

Key Features

• Wide Voltage Range: The MAX3395EETC+ supports a wide voltage range, with V_CC operating from 1.62V to 5.5V and V_L operating from 1.2V to 5.5V. This allows for seamless integration with a variety of digital systems, from low-power portable devices to higher voltage logic systems.
• Bidirectional Signal Translation: Its bidirectional interface enables automatic direction sensing, eliminating the need for direction control pins and simplifying the design process.
• High-Speed Operation: The device is capable of translating fast signals with minimal propagation delay, making it suitable for high-speed data communication protocols.
• Low-Power Consumption: It is optimized for low-power operation, which helps to extend battery life in portable applications.
• ESD Protection: The transceiver comes with integrated ESD protection, ensuring robust performance in environments susceptible to electrostatic discharge.

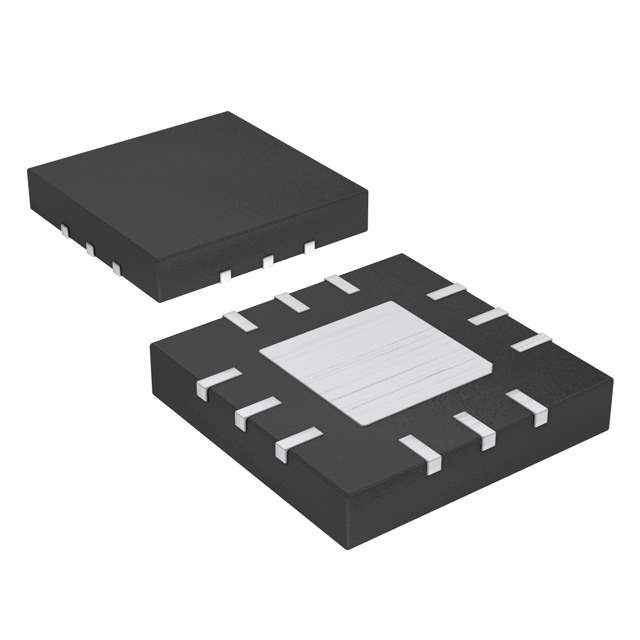

• Compact Package: The MAX3395EETC+ is offered in a compact 12-pin TQFN package, saving valuable board space in dense electronic designs.

Applications

The MAX3395EETC+ is ideal for a variety of applications, including but not limited to:

• Mobile phones and personal digital assistants (PDAs)
• GPS devices
• Portable media players
• Data communication systems
• Level shifting for SD/MMC cards

Conclusion

Overall, the MAX3395EETC+ from Maxim Integrated is a robust and reliable solution for level translation needs in mixed-voltage systems. Its high-speed capabilities, automatic bidirectional operation, and compatibility with a broad range of voltage levels make it an excellent choice for designers looking to bridge the gap between disparate digital logic levels.
