Product Overview: MAX3074EASA+T from Maxim Integrated

The MAX3074EASA+T is a high-performance, quad, RS-485/RS-422 transceiver from Maxim Integrated, designed to provide reliable communication in harsh industrial environments. This integrated circuit is suitable for applications that require high-speed data transmission over long cable lengths with robust noise immunity.

Key Features

• High-Speed Operation: The device supports data rates up to 10Mbps, making it ideal for high-speed data communication systems.
• Extended Temperature Range: It operates reliably over an extended temperature range of -40°C to +85°C, ensuring performance in extreme conditions.
• Low Power Consumption: With a low quiescent current, the MAX3074EASA+T is energy-efficient, which is crucial for power-sensitive applications.
• Fail-Safe Feature: The receiver inputs have a fail-safe feature that guarantees a known output state if input signals are open, shorted, or idle.
• Robust ESD Protection: The device is equipped with enhanced electrostatic discharge (ESD) protection up to ±15kV Human Body Model (HBM), safeguarding the transceiver against static electricity and other transient voltage events.

Applications

The MAX3074EASA+T is versatile and can be used in a variety of applications, including:

• Industrial Control Systems
• Factory Automation
• Building Automation
• Networked Security Systems
• Point-of-Sale Systems
• Data Acquisition Systems

Package and Availability

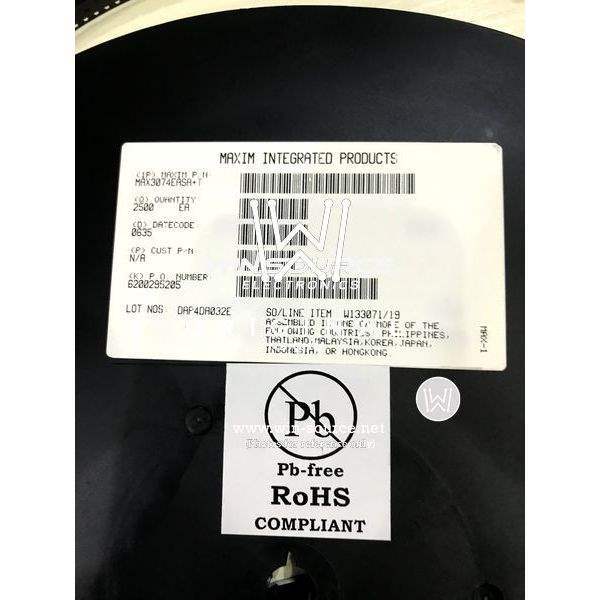

The transceiver is provided in a compact 8-pin SOIC package, marked with the suffix 'T' to indicate tape and reel packaging. This packaging is suitable for automated assembly processes, making it convenient for mass production requirements. The component is available for order, ensuring manufacturers can integrate it into their designs without delay.

Overall, the MAX3074EASA+T transceiver from Maxim Integrated is a robust, high-speed communication solution that offers reliability and efficiency for demanding industrial applications. Its features and capabilities make it a prime choice for designers looking to enhance their system's data integrity and operational stability.
