Products specifications Report Issue?

Category RF and Wireless - RF Misc ICs and Modules
Mfr Maxim Integrated
Package Tube
Product Status Obsolete
Function Dual Band LNA/Mixer
Frequency 1.85GHz ~ 1.91GHz
RF Type PCS
Mounting Type Surface Mount
Package / Case 28-WFQFN Exposed Pad
Supplier Device Package 28-TQFN (5x5)
Base Product Number MAX232
Standard Package 60 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 209794-MAX2323ETI+
Ultra Librarian 3D Model Ultra Librarian MAX2323ETI+ CAD Model

Description

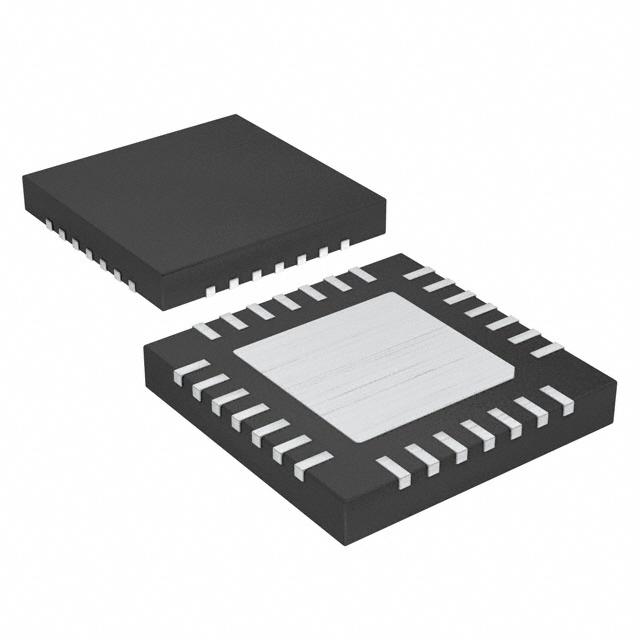

MAX2323ETI+ from Maxim Integrated

The MAX2323ETI+ is a high-performance, dual, downconversion mixer IC designed by Maxim Integrated, tailored for RF applications. It is a crucial component for wireless communication systems, including cellular base stations, wireless local loop, and MMDS (Multichannel Multipoint Distribution Service) systems. This device is engineered to offer an optimal balance between performance and power consumption, making it an ideal choice for designers who require efficient signal processing in their RF designs.

Key Features:

  • Frequency Range: The MAX2323ETI+ operates over a broad frequency range, making it versatile for various applications. It supports an RF frequency range from 1700MHz to 2200MHz and an LO frequency range from 1300MHz to 2000MHz.
  • High Linearity: With an impressive input IP3 of 24.5dBm at 900MHz, this mixer provides excellent linearity, which is essential for maintaining signal integrity in complex RF environments.
  • Low Noise Figure: The device boasts a low noise figure of 11.5dB at 900MHz, ensuring minimal signal degradation and improved receiver sensitivity.
  • Integrated LO Buffer: The inclusion of an integrated LO buffer simplifies the design process by reducing the number of external components required.
  • Single +5V Supply: The mixer operates on a single +5V supply voltage, which simplifies power management within the system.
  • Surface-Mount Package: The MAX2323ETI+ comes in a compact 28-pin TQFN package with exposed paddle, which facilitates efficient thermal management and is suitable for space-constrained applications.

Applications:

  • Cellular Base Stations
  • Wireless Local Loop (WLL)
  • MMDS Systems
  • Other RF Downconversion Applications

The MAX2323ETI+ integrates seamlessly into RF signal chains, providing designers with a robust downconversion solution that delivers high dynamic range and low distortion. Its performance characteristics make it a go-to choice for professionals seeking reliability and precision in their wireless communication systems.
