Maxim Integrated MAX2314EEI High-Performance IF Receiver

The Maxim Integrated MAX2314EEI is an advanced intermediate-frequency (IF) receiver designed for high-performance wireless communication systems. This receiver is a key component in the signal chain, offering exceptional dynamic range and sensitivity that make it an ideal choice for a range of applications, including cellular base stations, wireless local loop systems, and satellite receivers.

With its highly integrated design, the MAX2314EEI combines several critical functions into a single chip, which helps reduce system complexity and save on board space. It features a low-noise amplifier (LNA), a mixer, an automatic gain control (AGC) circuit, and a filter driver, all of which work together to process IF signals with precision and reliability.

The LNA provides a low noise figure, which is crucial for maintaining signal integrity, while the mixer converts the high-frequency input signal down to an IF that is easier to process. The AGC circuit ensures consistent signal levels, adapting to varying signal strengths to deliver optimal performance. Additionally, the filter driver allows for the connection of an external filter to further refine the signal.

Key specifications of the MAX2314EEI include:

• High dynamic range to handle a wide range of signal amplitudes
• Low noise figure for improved sensitivity
• Integrated AGC for consistent performance
• Single 2.7V to 5.5V supply voltage for ease of use
• Adjustable current consumption for power-sensitive applications

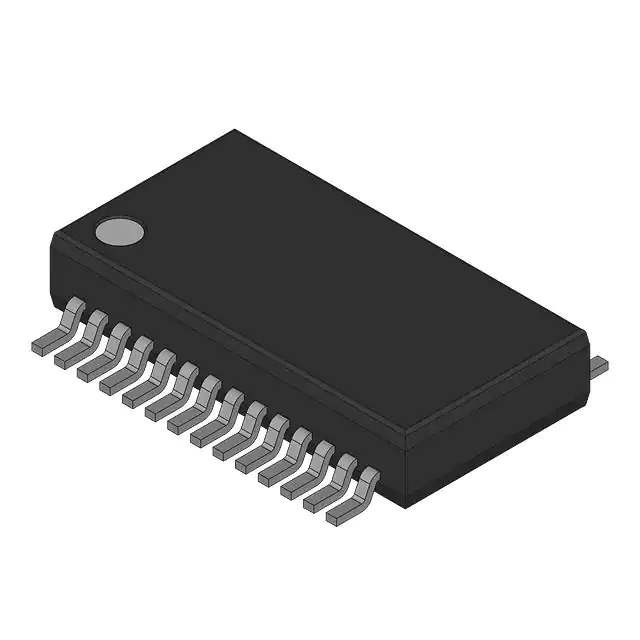

The MAX2314EEI comes in a compact 28-pin SSOP package, making it suitable for space-constrained designs. Its performance characteristics and integration level make it a compelling choice for designers looking to create robust and efficient wireless communication systems.

Overall, the Maxim Integrated MAX2314EEI IF receiver is a testament to the company's commitment to providing high-quality, integrated solutions for the demanding requirements of modern wireless communications. Its combination of performance, integration, and flexibility ensures that it can meet the needs of a wide array of sophisticated RF designs.
