ADRF6806ACPZ - Quadrature Modulator/Demodulator from Analog Devices Inc.

The ADRF6806ACPZ is a highly integrated quadrature modulator and demodulator component designed by Analog Devices Inc. This versatile device is ideal for advanced RF communication systems and is capable of operating within a wide frequency range, making it a suitable choice for a variety of applications, including wireless infrastructure, broadband data, and communication systems.

At the heart of the ADRF6806ACPZ lies a high-performance quadrature modulator and demodulator that enables efficient frequency translation with low noise and high linearity. The device features an integrated local oscillator (LO) with a fractional-N PLL synthesizer, which allows for fine frequency resolution and a broad tuning range. The LO frequency range spans from 750 MHz to 1150 MHz, providing the flexibility required for multiple frequency bands.

The ADRF6806ACPZ is designed to deliver exceptional signal quality and performance. It boasts a baseband bandwidth of 100 MHz, which allows for the processing of wideband signals without compromising on signal integrity. The device's high linearity and low noise performance ensure that the modulated signals have minimal distortion, which is critical for maintaining high data integrity in communication systems.

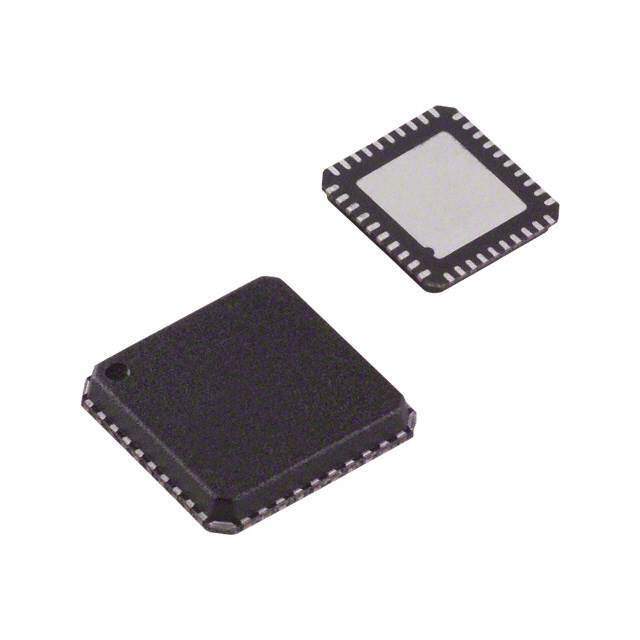

This component comes in a compact 32-lead LFCSP (5 mm x 5 mm) package, making it suitable for space-constrained applications. Its integration of multiple functions into a single chip not only saves board space but also simplifies the design process, reducing the time and cost associated with bringing RF products to market.

The ADRF6806ACPZ also includes additional features such as programmable charge pump currents, 3-wire serial interface, and lock detect functionality. These features provide designers with the tools needed to create highly customizable and reliable RF systems. Whether for commercial or industrial use, the ADRF6806ACPZ stands out as a high-quality component that delivers performance and versatility.

Key Specifications:

• Integrated Fractional-N PLL and VCO
• LO Frequency Range: 750 MHz to 1150 MHz
• Baseband Bandwidth: 100 MHz
• Low Noise and High Linearity Performance
• Compact 32-Lead LFCSP Package
• Programmable Charge Pump Currents
• 3-Wire Serial Interface
