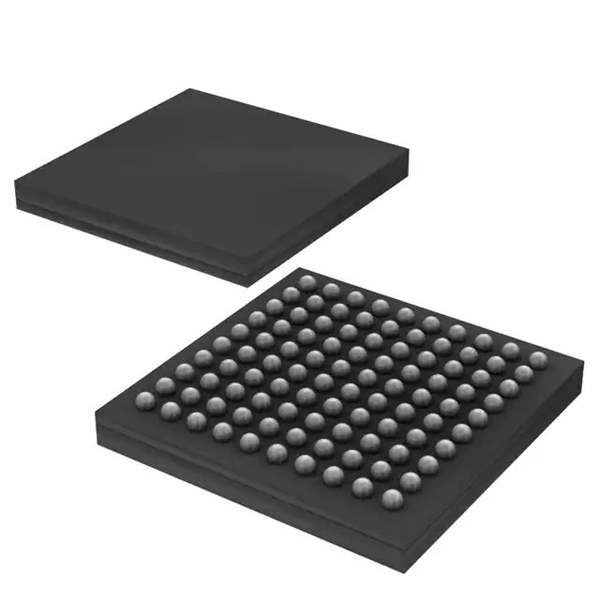

Maxim Integrated DS2155GNB+ Overview

The DS2155GNB+ is a high-performance, single-chip transceiver from Maxim Integrated that caters to T1, E1, and J1 environments. This versatile product is designed to handle both line-side and trunk-side interfaces, making it an ideal solution for telecommunications equipment, such as PBX, digital loop carrier, and multiplexers.

Key Features

• Integrated Transceiver: The DS2155GNB+ integrates a complete serial port for T1, E1, or J1 applications, simplifying design and conserving board space.
• Flexible Operation: It supports multiple modes, including T1 ESF/B8ZS, E1 CAS/HDB3, and J1, providing versatility for various communication standards.
• Programmable: With a host of programmable features, the DS2155GNB+ can be tailored to specific requirements, ensuring compatibility with a wide range of systems.
• High-Performance Receiver: The high-jitter-tolerance receiver ensures reliable operation even in challenging signal conditions, enhancing communication integrity.
• Robust Framing Options: It offers robust framing options, including D4, ESF, and CRC4, for T1 and E1 formats respectively, enabling precise and secure data transmission.

Applications

The DS2155GNB+ is suitable for a variety of applications within the telecommunications sector. Its robust feature set and flexibility make it a go-to choice for:

• Digital Cross Connect Systems
• Channel Service Units
• Data Service Units
• Integrated Access Devices
• Wireless Base Station Controllers
• Test Equipment

Technical Specifications

The device is packaged in a compact 100-Pin TQFP, making it ideal for space-constrained applications. It operates over a temperature range of -40°C to +85°C, ensuring reliability in diverse operating environments. The DS2155GNB+ also features a single 5V power supply, which simplifies power management within the system.

Conclusion

Maxim Integrated's DS2155GNB+ transceiver is a testament to their commitment to delivering high-quality, integrated solutions for the telecommunications industry. Its robust feature set, coupled with its adaptability across multiple communication standards, makes it an indispensable component for modern communication systems.
