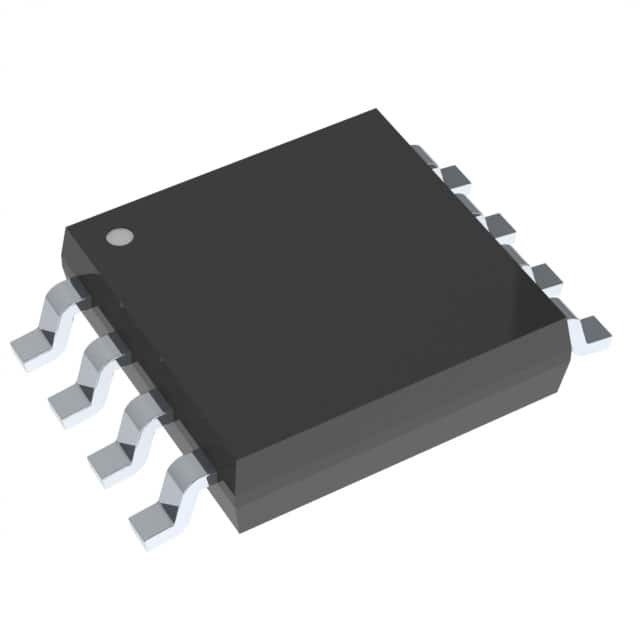

Maxim Integrated DS1869S-050/T&R Digital Potentiometer

The Maxim Integrated DS1869S-050/T&R is a state-of-the-art digital potentiometer designed to offer a highly flexible and precise solution for adjusting resistance values electronically. This digital potentiometer, commonly referred to as a "digipot," is an essential component for modern electronic applications requiring variable resistance settings that can be adjusted under software control.

With its compact surface-mount package, the DS1869S-050/T&R is suitable for space-constrained applications, while its tape and reel packaging format facilitates automated assembly processes, making it ideal for high-volume production. The device features a resistance range of 50kΩ, which can be adjusted through an easy-to-use digital interface, eliminating the need for mechanical potentiometer adjustments and providing a more stable and reliable solution.

The DS1869S-050/T&R operates from a wide power supply range of 3V to 5.5V, making it versatile for use in various systems. It also includes a wiper resistance as low as 70Ω typical, which contributes to its precise adjustment capabilities. The digital potentiometer offers 100 positions, allowing for fine-grained control over the resistance setting.

One of the key features of the DS1869S-050/T&R is its non-volatile memory (EEPROM), which stores the wiper position even when the power is turned off, ensuring that the device retains the last programmed resistance value. This feature is particularly useful in applications where maintaining the last setting is critical, such as in volume control or parameter adjustments in electronic devices.

Designed for durability, the DS1869S-050/T&R can handle an extended operating temperature range from -40°C to +85°C, ensuring consistent performance even in harsh environments. Its applications span across various fields, including audio control, industrial automation, and consumer electronics, where precise and programmable resistance is required.

In summary, the Maxim Integrated DS1869S-050/T&R digital potentiometer is a robust, precise, and user-friendly component that enhances the functionality and flexibility of electronic designs, making it a top choice for engineers and designers looking for a reliable and efficient solution for resistance adjustment.
