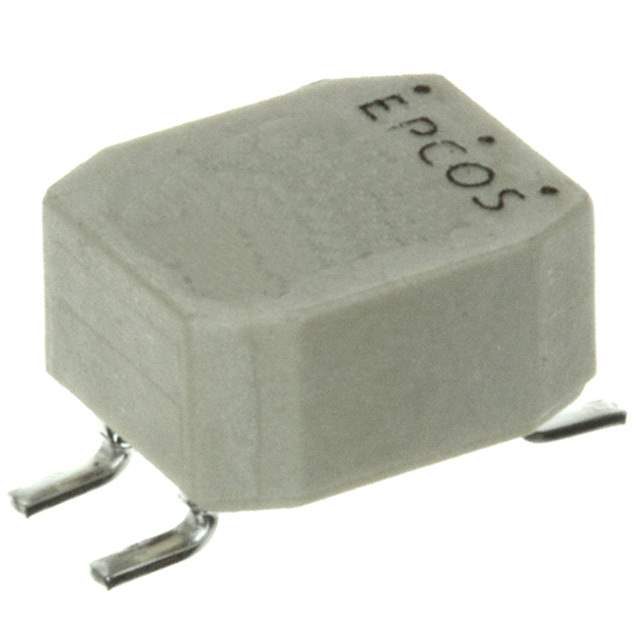

B82793C0253N201 Real Image
Same model may have multiple batches, images only for reference.

B82793C0253N201

Part No B82793C0253N201
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description Data and signal line chokes
Datasheet
B82793C0253N201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Series B82793
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 25μH @ 100kHz
Current Rating (Maximum) 800mA
DC Resistance (DCR) (Maximum) 110 mOhm (Typ)
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Operating Temperature Range -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD
Size 0.280" L x 0.236" W (7.10mm x 6.00mm)
Height (Maximum) 0.189" (4.80mm)
Package Horizontal, 4 Gull Wing
Win Source Part Number 1150911-B82793C0253N201
Manufacturer Homepage www.epcos.com
Popularity Medium
Supply and Demand Status Limited
Family Name B82793C0
Introduction Date January 27, 1999
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian B82793C0253N201 CAD Model

Description

The B82793C0253N201 is a signal line filter from EPCOS (TDK) with a horizontal, 4 gull wing package. The manufacturer is EPCOS (TDK).

  • Voltage Rating (AC): 42V
  • Voltage Rating (DC): 80V
  • Maximum Current Rating: 800mA
  • Inductance: 25μH @ 100kHz
  • DC Resistance: 110 mOhm (typical)
  • AEC-Q200 Rated: Yes
  • Automotive Applications: Suitable
  • RoHS Compliant: Yes
  • Halogen-Free: Yes
  • Size: 0.280" L x 0.236" W (7.10mm x 6.00mm)
  • Maximum Height: 0.189" (4.80mm)
  • Series: B82793
  • Packaging: Reel
