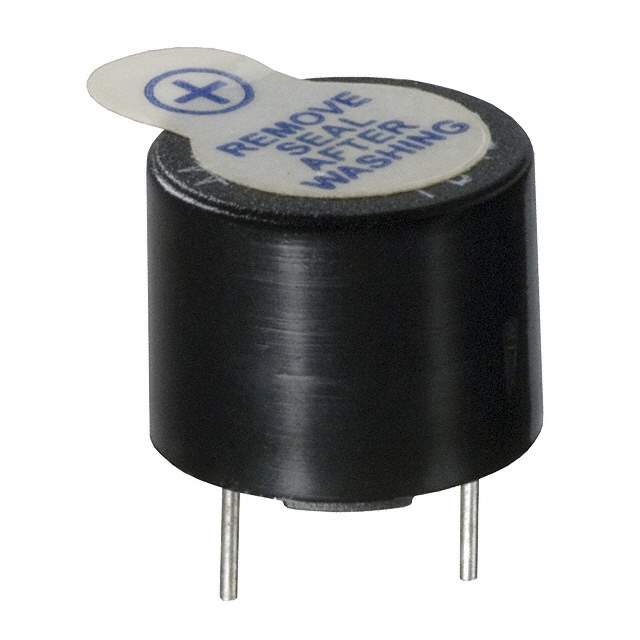

Same model may have multiple batches, images only for reference.

PB-12N23P-03Q

Name: PB-12N23P-03Q
Brand: Mallory Sonalert Products Inc.
SKU: 1352349
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PB-12N23P-03Q
Manufacturer	Mallory Sonalert Products Inc.
Catalog	Alarms, Buzzers, and Sirens
Description	BUZZER MAGNETIC 3V 12MM TH
Datasheet	PB-12N23P-03Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Audio Products - Alarms, Buzzers, and Sirens
Mfr	Mallory Sonalert Products Inc.
Series	PB
Package	Tube
Driver Circuitry	Indicator, Internally Driven
Input Type	DC
Voltage - Rated	3 V
Voltage Range	2 ~ 5V
Frequency	2.3kHz
Technology	Magnetic
Operating Mode	Single Tone
Sound Pressure Level (SPL)	85dB @ 3V, 10cm
Current - Supply	30mA
Port Location	Top
Temperature Range - Operating	-20°C ~ 70°C
Ratings	Washable
Mounting Type	Through Hole
Termination	PC Pins
Size / Dimension	0.472" Dia (12.00mm)
Height - Seated (Max)	0.402" (10.20mm)
Standard Package	40
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8531.80.9041
Win Source Part Number	1352349-PB-12N23P-03Q
Ultra Librarian 3D Model	Ultra Librarian PB-12N23P-03Q CAD Model

Alternative Products

Description

The Mallory Sonalert Products Inc. PB series is an audio product that features a PC pin termination and is packaged in a tube.

Size: 0.472" Dia (12.00mm)
Height: 0.402" (10.20mm) when seated
Voltage Rating: 3V
Frequency: 2.3kHz
Technology: magnetic
Input Type: DC
Operating Mode: single tone
Sound Pressure Level (SPL): 85dB @ 3V, 10cm
Voltage Range: 2 ~ 5V
Drive: internally driven
Port Location: on top
Mounting Type: through-hole
Operating Temperature Range: -20°C to 70°C
