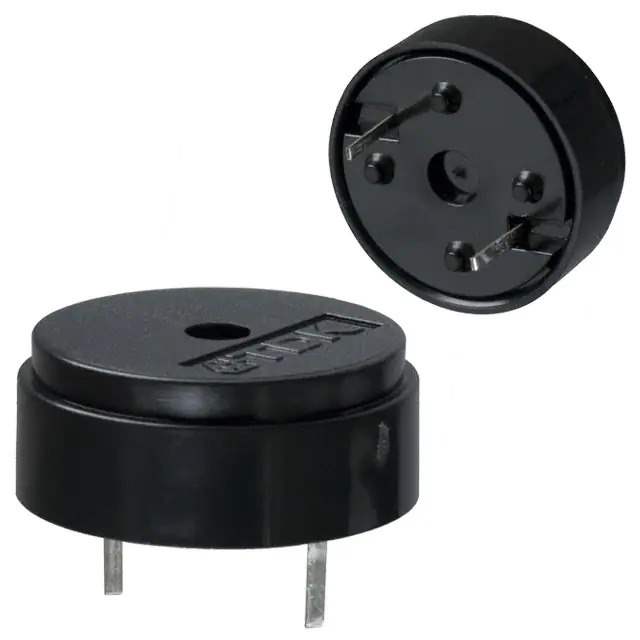

PS1740P02E Real Image
Same model may have multiple batches, images only for reference.

PS1740P02E

Part No PS1740P02E
Manufacturer TDK Corporation
Catalog Alarms, Buzzers, and Sirens
Description BUZZER PIEZO 3V 17MM TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Alarms, Buzzers, and Sirens
Mfr TDK Corporation
Series PS
Package Bulk
Product Status Active
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 3 V
Voltage Range 30V (Max)
Frequency 4kHz
Technology Piezo
Operating Mode Single Tone
Sound Pressure Level (SPL) 75dB @ 3V, 10cm
Port Location Top
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Through Hole
Termination PC Pins
Size / Dimension 0.669" Dia (17.00mm)
Height - Seated (Max) 0.307" (7.80mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 843558-PS1740P02E
Ultra Librarian 3D Model Ultra Librarian PS1740P02E CAD Model

Description

The 843558-PS1740P02E is an audio piezo buzzer from TDK Corporation.

  • Series: PS
  • Diameter: 0.669" (17.00mm)
  • Height: 0.307" (7.80mm)
  • Mounting Type: Through-Hole
  • Rated Voltage: 3V
  • Sound Pressure Level: 75dB @ 3V, 10cm
  • Frequency: 4kHz
  • Mode: Single-Tone
  • Signal Input: Zero-Peak
  • Voltage Range: Up to 30V
  • Operating Temperature: -10°C to 70°C
