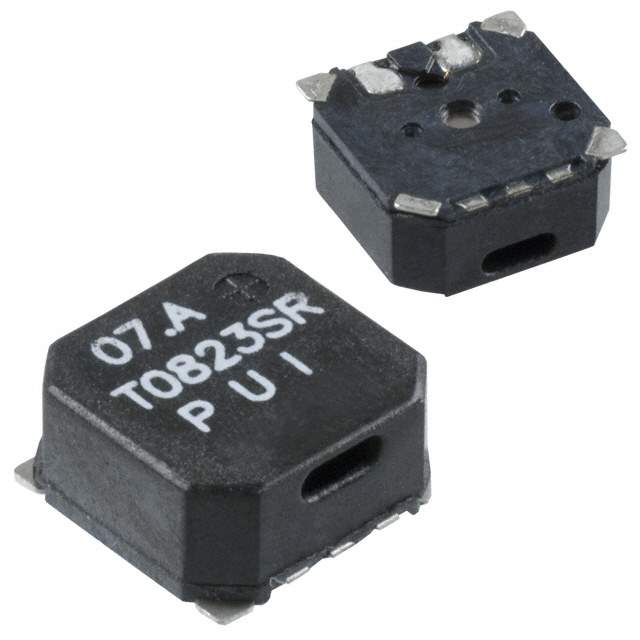

SMT-0823-S-R Real Image
Same model may have multiple batches, images only for reference.

SMT-0823-S-R

Part No SMT-0823-S-R
Manufacturer PUI Audio, Inc.
Catalog Audio Accessories
Description BUZZER MAGNETIC 5V 8.5X8.5MM SMD / Buzzers Transducer, Externally Driven Electromechanical/Magnetic 5 V 70mA 2.3kHz 87dB @ 5V, 10cm Surface Mount Solder Pads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr PUI Audio, Inc.
Series SMT
Package Tape & Reel
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 5 V
Voltage Range 3 ~ 7V
Frequency 2.3kHz
Technology Electromechanical/Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 87dB @ 5V, 10cm
Current - Supply 70mA
Port Location Side
Temperature Range - Operating -30°C ~ 70°C
Mounting SMD (SMT)
Termination Solder Pads
Dimension 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) 0.177" (4.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9041
Other Names Q11196668,SMT0823SR,668-1066-1,668-1066-2,668-1066-6
Standard Package 1,000
Win Source Part Number 1080985-SMT-0823-S-R
Ultra Librarian 3D Model Ultra Librarian SMT-0823-S-R CAD Model

Description

The SMT-0823-S-R is an audio product belonging to the category of alarms, buzzers, and sirens.

  • Alarm Type: Single Tone
  • Signal Input Type: Zero-Peak
  • Technology: Electromechanical/Magnetic
  • Frequency: 2.3kHz
  • Operating Voltage: 3-7V
  • Rated Voltage: 5V
  • Sound Pressure Level (SPL): 87dB @ 5V and 10cm
  • Height: 0.177 inches (4.50mm)
  • Dimensions: 0.335 inches L x 0.335 inches W (8.50mm x 8.50mm)
  • Current Supply: 70mA
  • Operating Temperature: -30°C to 70°C
  • Packaging: Tape and Reel
  • Standard Package: 1,000
  • Manufacturer: PUI Audio, Inc.
