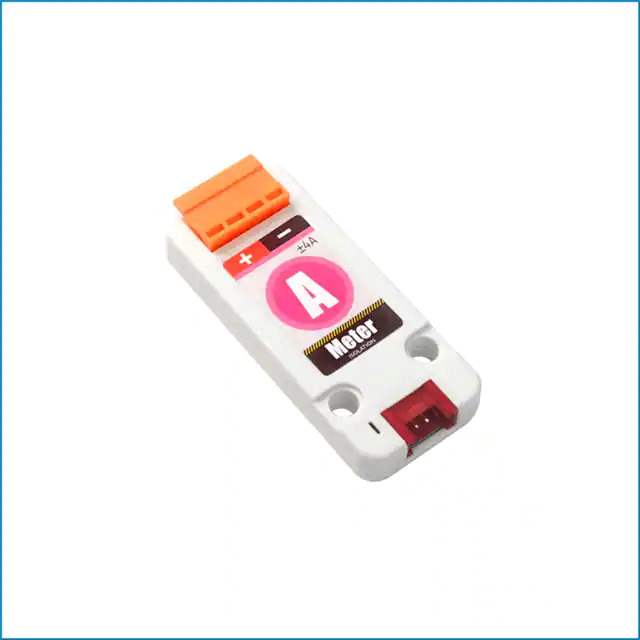

U086 Real Image
Same model may have multiple batches, images only for reference.

U086

Part No U086
Manufacturer M5Stack Technology Co., Ltd.
Catalog Evaluation Boards - Expansion Boards
Description AMMETER UNIT ADS1115
Datasheet
U086 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Expansion Boards, Daughter Cards
Mfr M5Stack Technology Co., Ltd.
Package Retail Package
Product Status Active
Platform Arduino
Type Test and Measurement
Function Ammeter Unit
Utilized IC / Part ADS1115, CA-IS3020S
Contents Board(s), Cable(s), Power Supply, Accessories
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 875352-U086
Ultra Librarian 3D Model Ultra Librarian U086 CAD Model

Description

The U086 is an ammeter unit development board designed for test and measurement applications.

  • Application: Test and Measurement
  • Compatibility: Arduino Platform
  • Package: Retail
  • Includes: Board(s), Cable(s), Power Supply, Accessories
  • ICs Used: ADS1115 and CA-IS3020S
  • Product Status: Active
  • Manufacturer: M5Stack Technology Co., Ltd.
