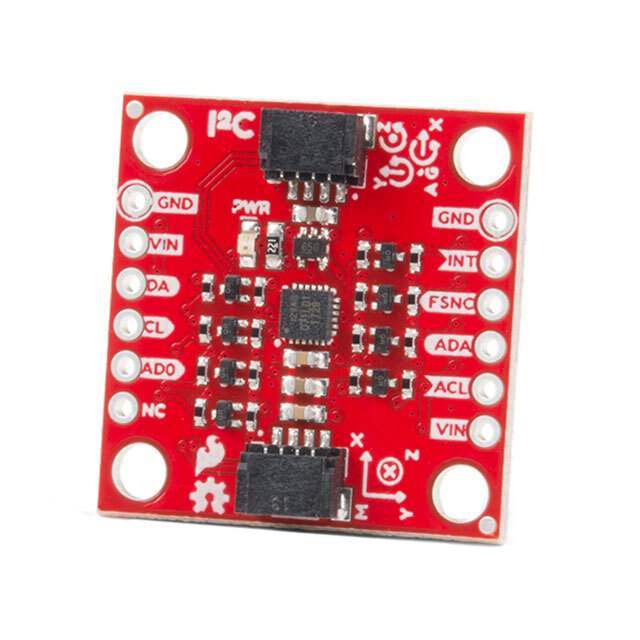

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1204014-SEN-15335
Manufacturer SparkFun Electronics Series -
Category Development Boards, Kits, Programmers -Evaluation Boards- Expansion Boards, Daughter Cards
Package Bulk
Product Status Active
Type Sensor
Function Accelerometer, Gyroscope, Magnetometer
Utilized IC / Part ICM-20948
Contents Board(s)
Ultra Librarian 3D Model Ultra Librarian SEN-15335 CAD Model

Description

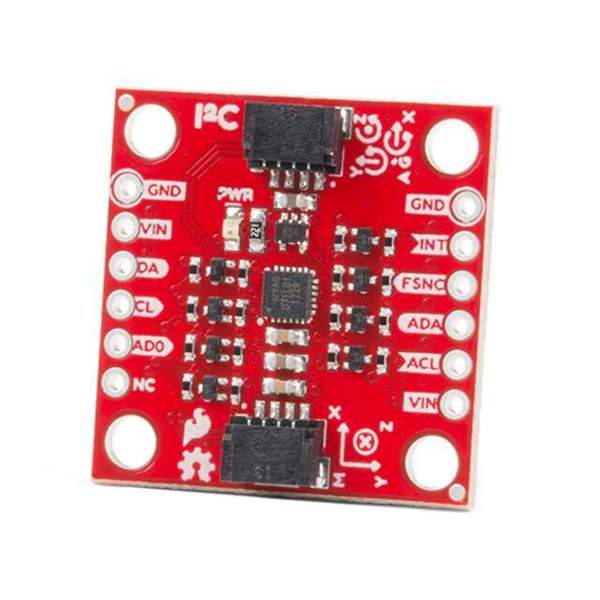

The SparkFun 9DoF IMU Breakout incorporates all the amazing features of Invensense's ICM-20948 into a Qwiic-enabled breakout board complete with a logic shifter and broken out GPIO pins for all your motion sensing needs. The ICM-20948 itself is an extremely low powered, I2 C and SPI enabled 9-axis motion tracking device that is ideally suited for smartphones, tablets, wearable sensors, and IoT applications. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.
