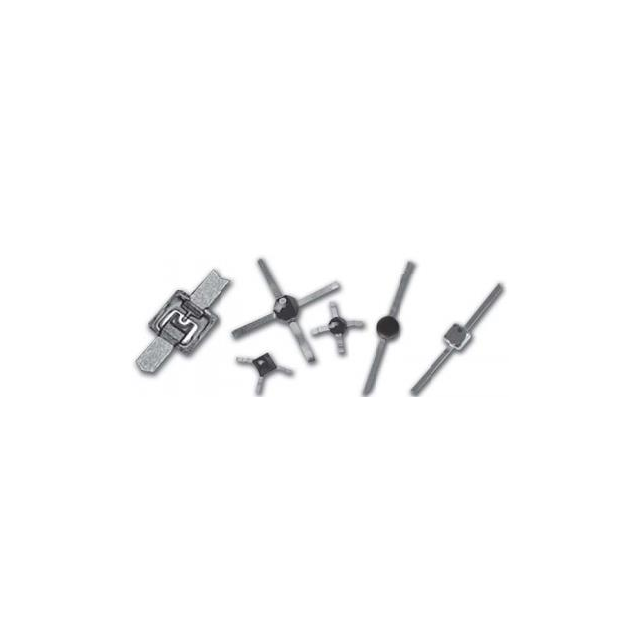

MSS30-242-B20 Real Image1 MSS30-242-B20 Real Image2
Same model may have multiple batches, images only for reference.
MSS30-242-B20 Real Image1 MSS30-242-B20 Real Image2
MSS30-242-B20 Real Image1 MSS30-242-B20 Real Image2
Same model may have multiple batches, images only for reference.

MSS30-242-B20

Part No MSS30-242-B20
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description SCHOTTKY DIODE,BEAMLEAD, B20 / RF Diode Schottky - 1 Pair Series Connection 2V 50 mA 100 mW B20
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes>RF Diodes
Mfr M/A-Com Technology Solutions
Series -
Package Tray
Diode Type Schottky - 1 Pair Series Connection
Voltage - Peak Reverse (Max) 2V
Current - Max 50 mA
Capacitance @ Vr, F 0.1pF @ 0V, 1MHz
Resistance @ If, F 13Ohm @ 5mA, 1MHz
Power Dissipation (Max) 100 mW
Temperature Range - Operating -65°C ~ 150°C
Package / Case B20
Supplier Device Package B20
Base Product Number MSS30
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Standard Package 25 pcs
Win Source Part Number 1382967-MSS30-242-B20
Ultra Librarian 3D Model Ultra Librarian MSS30-242-B20 CAD Model

Description

The MSS30-242-B20 is a pair of Schottky RF diodes designed for use in discrete semiconductor products.

  • Maximum Current: 50 mA
  • Voltage Peak Reverse: 2V
  • Power Dissipation: 100 mW
  • Resistance: 13 Ohm @ 5mA and 1MHz
  • Package: B20
  • Operating Temperature Range: -65°C to 150°C
  • HTSUS Code: 8541.10.0070
  • Manufacturer: M/A-Com Technology Solutions
  • Moisture Sensitivity Level: 1 (unlimited)
