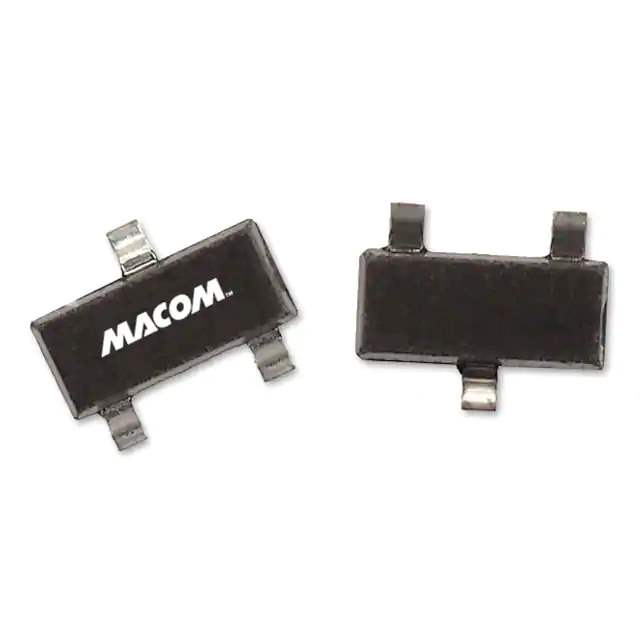

MA4P7455-287T Real Image
Same model may have multiple batches, images only for reference.

MA4P7455-287T

Part No MA4P7455-287T
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description DIODE,PIN,PLASTIC,LEADFREE
Datasheet
MA4P7455-287T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr M/A-Com Technology Solutions
Series SMPP
Package Tape & Reel
Product Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 100V
Current - Max 150 mA
Capacitance @ Vr, F 0.35pF @ 50V, 1MHz
Resistance @ If, F 3Ohm @ 10mA, 100MHz
Power Dissipation (Max) 250 mW
Temperature Range - Operating 175°C (TJ)
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Base Product Number MA4P7455
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Win Source Part Number 628767-MA4P7455-287T
Ultra Librarian 3D Model Ultra Librarian MA4P7455-287T CAD Model

Description

The MA4P7455-287T is a PIN diode from M/A-Com Technology Solutions.

  • Series: SMPP
  • Category: Discrete Semiconductor Products - Diodes - RF Diodes
  • Maximum Current Rating: 150mA
  • Capacitance: 0.35pF @ 50V and 1MHz
  • Peak Reverse Voltage: 100V
  • Maximum Power Dissipation: 250mW
  • Resistance: 3Ohm @ 10mA and 100MHz
  • Mount: Surface mount
  • Package: TO-236-3, SC-59, SOT-23-3
  • Temperature Range: 175°C
  • Status: Active
