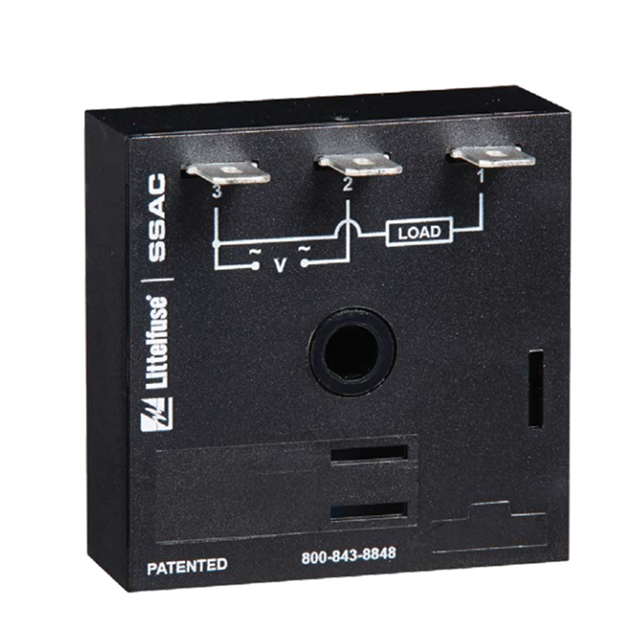

TSD24145S Real Image
Same model may have multiple batches, images only for reference.

TSD24145S

Part No TSD24145S
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DELAY 45SEC / Interval Time Delay Relay SPST-NO (1 Form A) Fixed, 45 Sec Delay Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series TSD2
Package Bulk
Mounting Type Chassis Mount
Relay Type Solid State Relay
Function Interval
Circuit SPST-NO (1 Form A)
Delay Time Fixed, 45 Sec
Voltage - Supply 120VAC
Termination Style Quick Connect - 0.250" (6.3mm)
Timing Adjustment Method Fixed
Timing Initiate Method Input Voltage
MSL Level Not Applicable
ECCN EAR99
HTSUS 9107.00.8000
Other Names -1024-TSD24145S
Standard Package 1
Win Source Part Number 1101496-TSD24145S
Ultra Librarian 3D Model Ultra Librarian TSD24145S CAD Model

Description

The TSD24145S is an interval time delay relay electronic component from the TSD2 series, manufactured by Littelfuse Inc.

  • Relay Type: Solid State
  • Circuit: SPST-NO (1 Form A)
  • Delay Time: Fixed, 45 sec
  • Timing Adjustment Method: Fixed
  • Voltage - Supply: 120VAC
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Mounting Type: Chassis Mount
  • Packaging: Bulk
