Same model may have multiple batches, images only for reference.

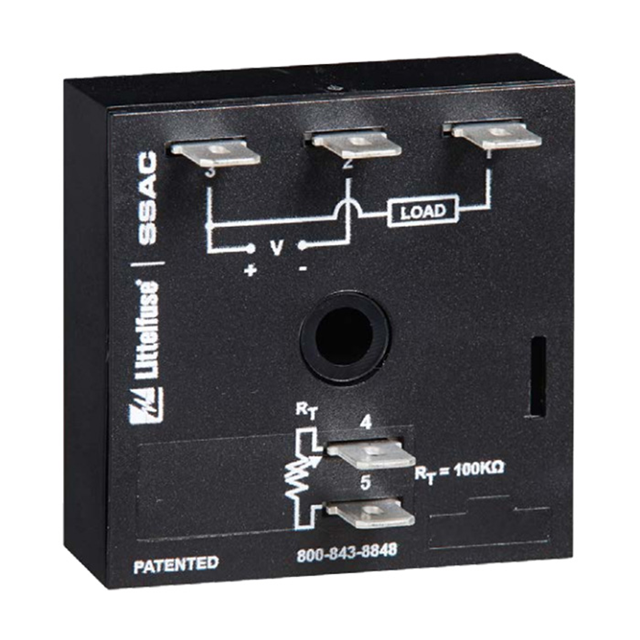

KSD3120A Real Image
Same model may have multiple batches, images only for reference.

KSD3120A

Part No KSD3120A
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DELAY 10SEC / Repeat Cycle Time Delay Relay SPST-NO (1 Form A) 0.1 Sec ~ 10 Sec Delay Chassis Mount
Datasheet
KSD3120A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series KSD3
Package Bulk
Mounting Type Chassis Mount
Relay Type Solid State Relay
Function Repeat Cycle
Circuit SPST-NO (1 Form A)
Delay Time 0.1 Sec ~ 10 Sec
Voltage - Supply 12VDC
Termination Style Quick Connect - 0.250" (6.3mm)
Timing Adjustment Method External Resistor
Timing Initiate Method Input Voltage
MSL Level Not Applicable
ECCN EAR99
HTSUS 9107.00.8000
Other Names -1024-KSD3120A
Standard Package 1
Win Source Part Number 996191-KSD3120A
Ultra Librarian 3D Model Ultra Librarian KSD3120A CAD Model

Description

The KSD3120A is a solid-state relay that is part of the KSD3 series. It is designed for use in industrial automation and controls, specifically time delay relays.

  • Win Source Part Number: 996191
  • Package: Bulk
  • Standard Package: 1
  • Function: Repeat cycle
  • Circuit: SPST-NO (1 Form A)
  • Contact Rating @ Voltage: Not applicable
  • Delay Time: 0.1 sec to 10 sec
  • Timing Adjustment: External resistor
  • Timing Initiate Method: Input voltage
  • Voltage Supply: 12VDC
  • Mounting Type: Chassis mount
  • ECCN: EAR99
  • HTSUS: 9107.00.8000
  • Manufacturer: Littelfuse Inc.
