Same model may have multiple batches, images only for reference.

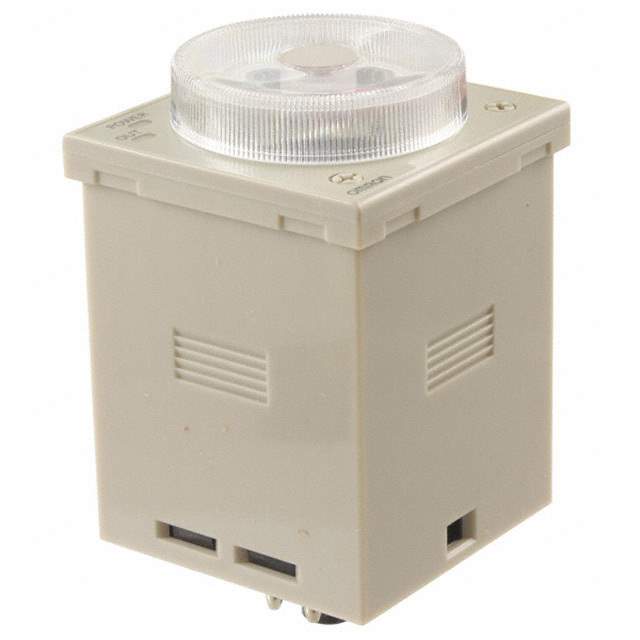

H3CRA8301AC100240DC100125 Real Image
Same model may have multiple batches, images only for reference.

H3CRA8301AC100240DC100125

Part No H3CRA8301AC100240DC100125
Manufacturer Omron
Catalog Time Delay Relays
Description DPDT Time Delay Relays 100VAC/100VDC 240VAC/125VDC Relay Output
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Accuracy 0.2 %
Coil Voltage (AC) 240 V
Coil Voltage (DC) 125 V
Current Rating 5 A
Max Current Rating 5 A
Maximum Operating Temperature 55 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 30 V
Min Operating Temperature -10 °C
Mount Plug-In
Number of Pins 8
Relay Type Integrated
RoHS Non-Compliant
Termination Circular
Throw Configuration DPDT
Weight 90 g
Win Source Part Number 1042473-H3CRA8301AC100240DC100125
Categories Time Delay Relays
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian H3CRA8301AC100240DC100125 CAD Model

Description

The Omron H3CRA8301AC100240DC100125 is a time delay relay with a circular termination and integrated relay type.

  • Termination: Circular
  • Relay Type: Integrated Relay
  • Current Rating: 5 A
  • Weight: 90 g
  • Pin Count: 8
  • Accuracy: 0.2 %
  • Maximum Operating Temperature: 55 °C
  • Minimum Operating Temperature: -10 °C
  • Throw Configuration: DPDT
  • Coil Voltage: 125 V (DC) and 240 V (AC)
  • RoHS Compliance: Non-Compliant
  • Supply and Demand: Shortage
