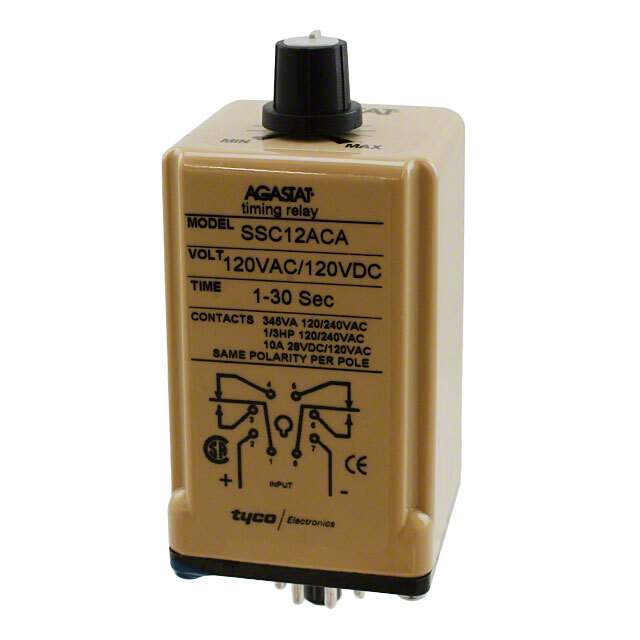

SSC12ACA Real Image
Same model may have multiple batches, images only for reference.

SSC12ACA

Part No SSC12ACA
Manufacturer TE Connectivity
Catalog Time Delay Relays
Description RELAY TIME DELAY 30SEC 10A 120V  /  On-Delay Time Delay Relay DPDT (2 Form C) 1 Sec ~ 30 Sec Delay 10A @ 120VAC Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr TE Connectivity Aerospace, Defense and Marine
Series SSC, AGASTAT
Package Bulk
Mounting Type Socketable
Relay Type Mechanical Relay
Function On-Delay
Circuit DPDT (2 Form C)
Delay Time 1 Sec ~ 30 Sec
Contact Rating @ Voltage 10A @ 120VAC
Voltage - Supply 120VAC/DC
Termination Style Plug In, 8 Pin (Octal)
Timing Adjustment Method Hand Dial
Timing Initiate Method Input Voltage
Base Product Number SSC1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0080
Other Names A104751,5-1437470-3,514374703
Standard Package 1
Win Source Part Number 1091453-SSC12ACA
Ultra Librarian 3D Model Ultra Librarian SSC12ACA CAD Model

Description

The AGASTAT SSC12ACA is an industrial automation and controls time delay relay.

  • Termination Style: Plug-In
  • Number of Pins: 8
  • Package Quantity: 1
  • Circuit: DPDT (2 Form C)
  • Relay Type: Mechanical
  • Contact Rating @ Voltage: 10A @ 120VAC
  • Delay Time: 1 second to 30 seconds
  • Timing Adjustment: Hand Dial
  • Timing Initiate Method: Input Voltage
  • Voltage Supply: 120VAC/DC
  • Mounting Type: Socketable
  • Alternative Parts (Cross-Reference): SSC12ACA5-1437470-3
  • REACH Status: Unaffected
  • ECCN: EAR99
