Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series SMF
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 16V
Voltage - Breakdown (Min) 17.8V
Voltage - Clamping (Max) @ Ipp 26V
Current - Peak Pulse (10/1000µs) 7.7A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123F
Base Product Number SMF16
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 669085-SMF16CA
Ultra Librarian 3D Model Ultra Librarian SMF16CA CAD Model

Description

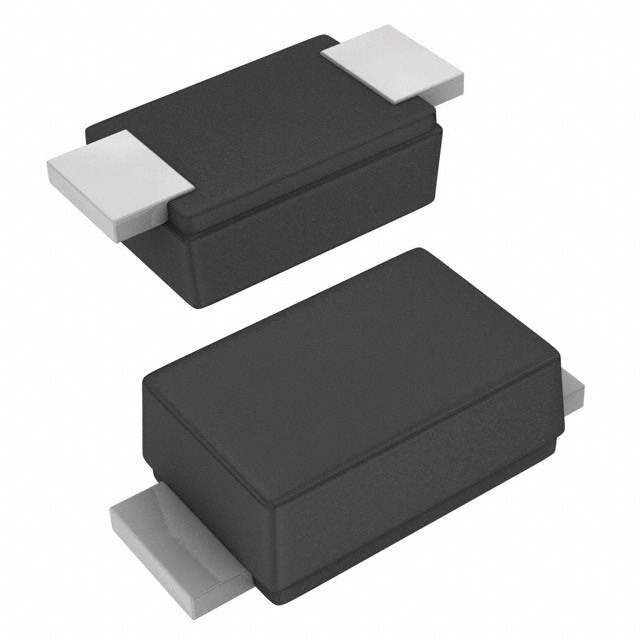

The SMF16CA is a Zener TVS diode from Littelfuse Inc.

  • Design: for circuit protection against transient voltage spikes
  • Reverse Standoff Voltage: 16V
  • Breakdown Voltage: 17.8V
  • Clamping Voltage @ Peak Pulse Current: 26V
  • Peak Pulse Power: 200W
  • Peak Pulse Current: 7.7A
  • Polarity: bidirectional
  • Mounting: surface mountable
  • Package: compact SOD-123F
  • Temperature Range: -65°C to 150°C
  • Product Status: active
  • Series: SMF series
  • Application: general-purpose applications
