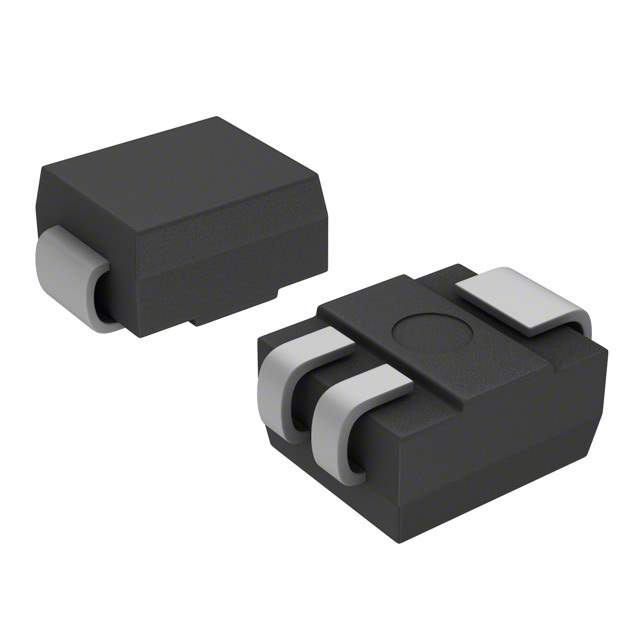

S4SRP Real Image
Same model may have multiple batches, images only for reference.

S4SRP

Part No S4SRP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR SENS GATE 400V 0.8 AMP SMT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Voltage - Off State 400V
Voltage - Gate Trigger (Vgt) (Maximum) 800mV
Current - Gate Trigger (Igt) (Maximum) 200μA
Voltage - On State (Vtm) (Maximum) 1.7V
Current - On State (It (AV)) (Maximum) 510mA
Current - On State (It (RMS)) (Maximum) 800mA
Current - Hold (Ih) (Maximum) 5mA
Current - Off State (Maximum) 1μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 16A, 20A
SCR Type Sensitive Gate
Temperature Range - Operating -40°C ~ 110°C
Mounting Style SMD
Manufacturer Package DO-214AA, SMB (3 Leads), Compak
Supplier Device Package Compak
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803322-S4SRP
Ultra Librarian 3D Model Ultra Librarian S4SRP CAD Model

Description

The 803322-S4SRP SCR from Littelfuse Inc. is a sensitive gate SCR that comes in a DO-214AA, SMB (3 Leads), Compak package.

  • Voltage Off State: 400V
  • Current Non-repetitive Surge 50, 60Hz (Itsm): 16A, 20A
  • Current On State (It (RMS)) (maximum): 800mA
  • Voltage On State (Vtm) (maximum): 1.7V
  • Current On State (It (AV)) (maximum): 510mA
  • Current Off State (maximum): 1μA
  • Voltage Gate Trigger (Vgt) (maximum): 800mV
  • Current Gate Trigger (Igt) (maximum): 200μA
