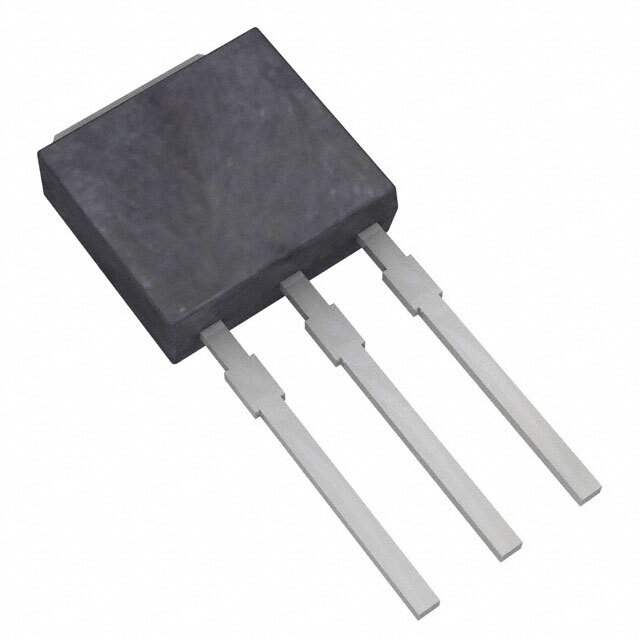

S2012V Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr Littelfuse Inc.
Package Bulk
Product Status Discontinued
Voltage - Off State 200 V
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Gate Trigger (Igt) (Max) 20 mA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 7.6 A
Current - On State (It (RMS)) (Max) 12 A
Current - Hold (Ih) (Max) 40 mA
Current - Off State (Max) 10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 100A, 120A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package TO-251 (V-Pak/I-Pak)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 662341-S2012V
Ultra Librarian 3D Model Ultra Librarian S2012V CAD Model

Description

The 662341-S2012V is a thyristor in the SCRs category of discrete semiconductor products.

  • Maximum Off-State Voltage: 200V
  • Maximum Gate Trigger Voltage: 1.5V
  • Maximum On-State Current: 7.6A
  • Maximum RMS On-State Current: 12A
  • Current Hold (Ih): 40mA
  • Gate Trigger Current (Igt): 20mA
  • Standard Package: 1,000 pcs in bulk packaging
  • Operating Temperature: -40°C to 125°C
  • SCR Type: Standard recovery
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-251 (V-Pak/I-Pak)
  • Product Status: Discontinued
  • Manufacturer: Littelfuse Inc.
