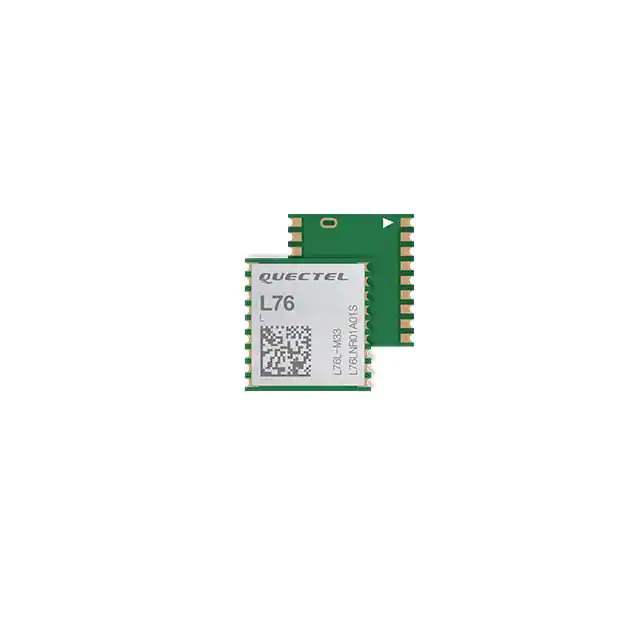

L76L-M33 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
Product Status Active
Programmable Not Verified
RF Family/Standard Navigation
Protocol BeiDou, Galileo, GLONASS, GPS, GNSS
Frequency 1.561GHz, 1.575GHz, 1.602GHz
Data Rate 921.6kbps
Sensitivity -165dBm
Serial Interfaces I2C, UART
Antenna Type Antenna Not Included
Voltage - Supply 2.8V ~ 4.3V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 18-SMD Module
Base Product Number L76
Standard Package 500 pcs
MSL Level 3 (168 Hours)
ECCN 5A992C SC
HTSUS 8517.62.0090
Win Source Part Number 847631-L76L-M33
Ultra Librarian 3D Model Ultra Librarian L76L-M33 CAD Model

Description

The 847631-L76L-M33 is an RF Transceiver Module and Modem designed for navigation applications from Quectel.

  • Product Category: RF and Wireless, Navigation
  • Package: Tape and Reel
  • Frequencies Supported: 1.561GHz, 1.575GHz, 1.602GHz
  • Protocols Supported: BeiDou, Galileo, GLONASS, GPS, GNSS
  • Data Rate: 921.6kbps
  • Sensitivity: -165dBm
  • Voltage Supply: 2.8V to 4.3V
  • Temperature Range: -40°C to 85°C
  • Serial Interfaces: I2C, UART
  • Mounting Type: Surface Mount
  • Manufacturer: Quectel
  • Product Status: Active
