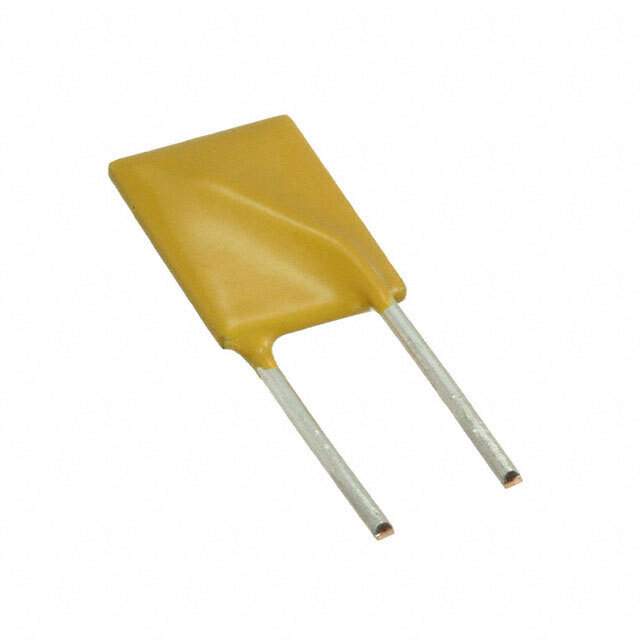

RKEF375 Real Image
Same model may have multiple batches, images only for reference.

RKEF375

Part No RKEF375
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 3.75A T/H
Datasheet
RKEF375 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 3.75A
Current - Trip (It) 7.5A
Time to Trip 22s
Resistance - Initial (Ri) (Min) 17 mOhm
Resistance - Post Trip (R1) (Max) 60 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max) 0.992" (25.20mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Win Source Part Number 1092101-RKEF375
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RKEF375 CAD Model

Description

The Littelfuse Inc. 1092101-RKEF375 is a polymeric type circuit protection device that can handle a maximum voltage of 60V and a maximum current of 40A.

  • Approvals: CSA, TUV, and UL
  • Mounting: Through-Hole
  • Height: 0.992" (25.20mm)
  • Lead Spacing: 0.199" (5.05mm)
  • Voltage: 60V
  • Current: 40A
  • Current Hold (Ih): 3.75A
  • Current Trip (It): 7.5A
  • Time to Trip: 22s
  • Resistance (Ri): 17 mOhm
  • Resistance (R1): 60 mOhm
  • Application: Circuit Protection
  • Operating Temperature: -40°C to 85°C
