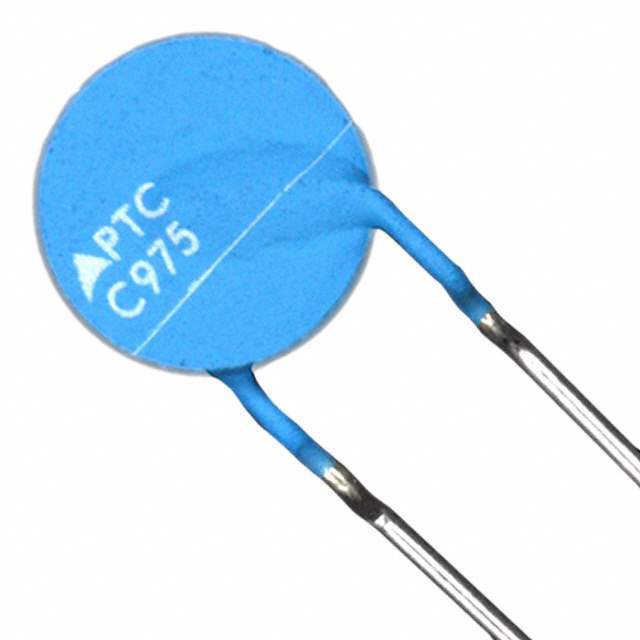

Same model may have multiple batches, images only for reference.
B59975C0120A070 EPCOS - TDK Electronics
Same model may have multiple batches, images only for reference.

B59975C0120A070

Part No B59975C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 450MA RADIAL
Datasheet
B59975C0120A070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306785-B59975C0120A070
Category Circuit Protection PTC Resettable Fuses
Manufacturer EPCOS - TDK Electronics
Packaging Bulk
Part Status Active
Type Ceramic
Voltage - Max 30V
Current - Hold (Ih) (Max) 450 mA
Current - Trip (It) 900 mA
Current - Max 3 A
Resistance - 25°C (Typ) 1.8 Ohms
Ultra Librarian 3D Model Ultra Librarian B59975C0120A070 CAD Model

Description

  • Lead-free terminals
  • Marking: Type, manufacturer's logo, reference temperature in °C and date code YYWW (no date code for types with wmax = 4 mm)
  • Low resistance
  • For rated currents of up to 1.8 A
  • UL approval to UL 1434 for Vmax = 15 V and VR = 12 V (file number E69802)
  • Qualification based on AEC-Q200, Rev. D (except: B59935C* and B59995C*)
  • RoHS-compatible
