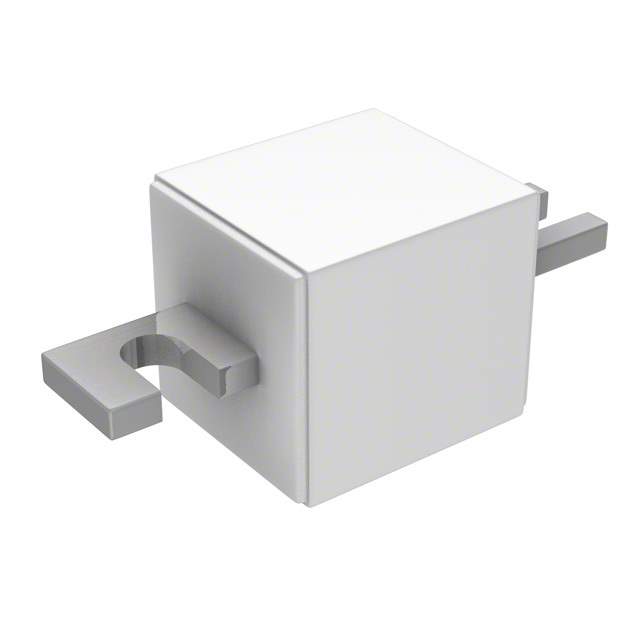

170M5199 Real Image
Same model may have multiple batches, images only for reference.

170M5199

Part No 170M5199
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE SQUARE 900A 1.3KVAC RECT / 900A 1.3 kV AC DC Fuse Square Bolt Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Eaton - Bussmann Electrical Division
Package Bulk
Mounting Type Bolt Mount
Fuse Type Square
Current Rating (Amps) 900A
Voltage Rating - AC 1.3 kV
Applications Electrical, Industrial
Features Indicating
Approval Agency CSA, UR
Breaking Capacity @ Rated Voltage 100kA
Package / Case Rectangular, Blade
Dimension 3.150" L x 2.402" W x 2.953" H (80.00mm x 61.00mm x 75.00mm)
Melting I2t 360000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8535.10.0040
Standard Package 3
Win Source Part Number 1198126-170M5199
Ultra Librarian 3D Model Ultra Librarian 170M5199 CAD Model

Description

The 170M5199 is an electrical, specialty fuse that belongs to the Circuit Protection category. The fuse is designed to operate @ a voltage rating of 1.3 kV and has a current rating of 900A.

  • Voltage Rating: 1.3 kV
  • Current Rating: 900A
  • Fuse Type: Square fuse
  • Package: Bulk
  • Standard Package: 3
  • Mounting Type: Bolt-mounted
  • Dimension: 3.150" L x 2.402" W x 2.953" H (80.00mm x 61.00mm x 75.00mm)
  • Manufacturer: Eaton - Bussmann Electrical Division
  • Approvals: CSA and UR
  • Features: Indicating
  • Breaking Capacity: 100kA
  • Melting I2t: 360000
