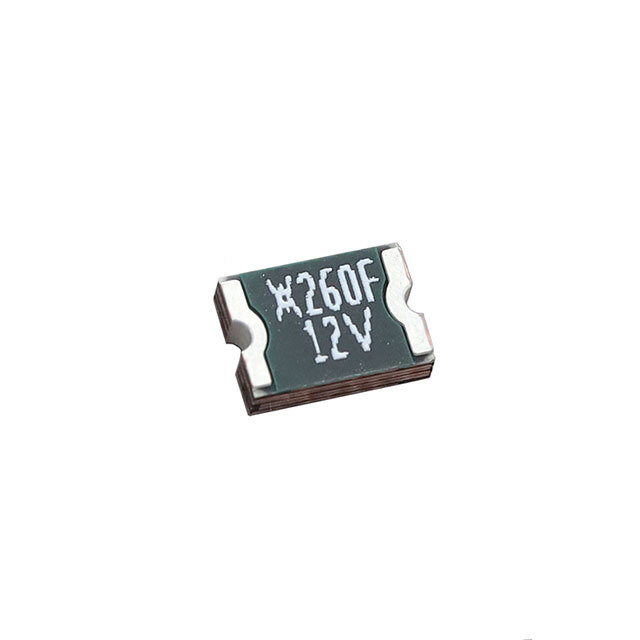

Same model may have multiple batches, images only for reference.
MINIASMDC260F/12-2 Littelfuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MINIASMDC260F/12-2

Part No MINIASMDC260F/12-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description Polymeric PTC Resettable Fuse 12V 2.6 A Ih Surface Mount 1812 (4532 Metric), Concave
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Series PolySwitch®, miniASMD
Packaging Bulk
Type Polymeric
Voltage - Max 12V
Current - Hold (Ih) (Max) 2.6 A
Current - Trip (It) 5 A
Current - Max 100 A
Time to Trip 5 s
Resistance - Initial (Ri) (Min) 15 mOhms
Resistance - Post Trip (R1) (Max) 47 mOhms
Temperature Range - Operating -40°C ~ 85°C
Grade Automotive
Qualification AEC-Q200
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.181" L x 0.128" W (4.60mm x 3.24mm)
Thickness (Max) 0.060" (1.52mm)
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1481056-MINIASMDC260F/12-2
Ultra Librarian 3D Model Ultra Librarian MINIASMDC260F/12-2 CAD Model
