Same model may have multiple batches, images only for reference.

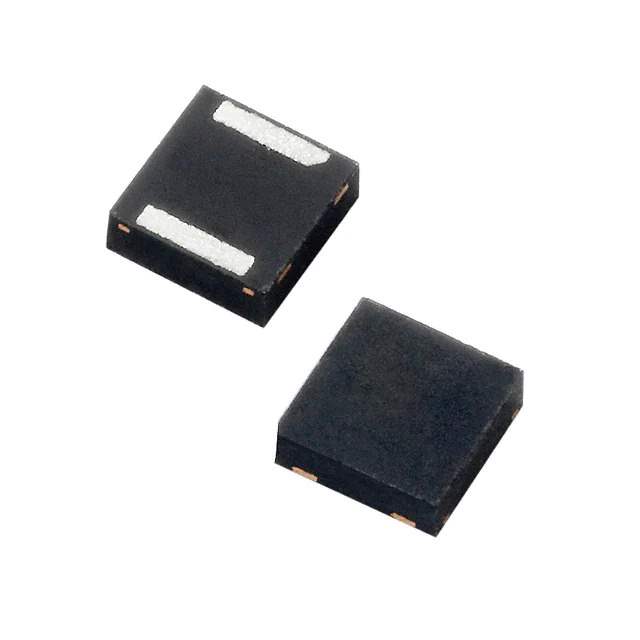

PLED13Q12 Real Image
Same model may have multiple batches, images only for reference.

PLED13Q12

Part No PLED13Q12
Manufacturer Littelfuse Inc.
Catalog Lighting Protection
Description LIGHT PROTECT LED SHUNT 13V SMD / Lighting Protection LED Shunt 13V Surface Mount
Datasheet
PLED13Q12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Lighting Protection
Mfr Littelfuse Inc.
Series PLED®
Package Tape & Reel
Product Status Active
Voltage - Clamping 26 V
Voltage 13V
Technology LED Shunt
Number of Circuits 1
Applications LED Protection
Mounting Type Surface Mount
Package / Case 2-TDFN
Supplier Device Package 2-QFN (3x3)
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 889979-PLED13Q12
Ultra Librarian 3D Model Ultra Librarian PLED13Q12 CAD Model

Description

The 889979-PLED13Q12 is a circuit protection component designed for LED protection.

  • Series: PLED
  • Voltage: 13V
  • Suitable for: Surface Mount applications
  • Package/Case: 2-TDFN
  • Circuits: Single
  • Voltage Clamping: 26V
  • Standard Package: 5,000 pcs
  • Classification: EAR99
  • REACH: Unaffected by REACH regulations
