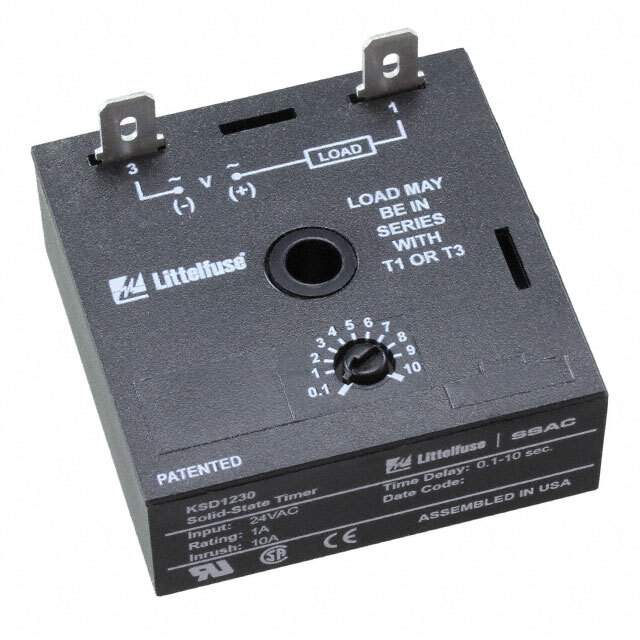

KSD1230 Real Image
Same model may have multiple batches, images only for reference.

KSD1230

Part No KSD1230
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DELAY 10SEC CHASSIS / On-Delay Time Delay Relay SPST-NO (1 Form A) 0.1 Sec ~ 10 Sec Delay Chassis Mount
Datasheet
KSD1230 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series KSD1
Package Bulk
Mounting Type Chassis Mount
Relay Type Solid State Relay
Function On-Delay
Circuit SPST-NO (1 Form A)
Delay Time 0.1 Sec ~ 10 Sec
Voltage - Supply 24VAC
Termination Style Quick Connect - 0.250" (6.3mm)
Timing Adjustment Method Screwdriver Slot
Timing Initiate Method Input Voltage
MSL Level Not Applicable
ECCN EAR99
HTSUS 9107.00.8000
Other Names F10564,-1024-KSD1230
Standard Package 1
Win Source Part Number 1184259-KSD1230
Ultra Librarian 3D Model Ultra Librarian KSD1230 CAD Model

Description

The KSD1230 is a time delay relay from Littelfuse Inc.

  • Series: KSD1
  • Function: On-Delay
  • Circuit Configuration: SPST-NO (1 Form A)
  • Mounting: Chassis
  • Delay Time: 0.1 seconds to 10 seconds
  • Timing Adjustment Method: Screwdriver Slot
  • Input Voltage: 24VAC
  • Suitable For: Use in industrial automation and control applications where a time delay function is required.
