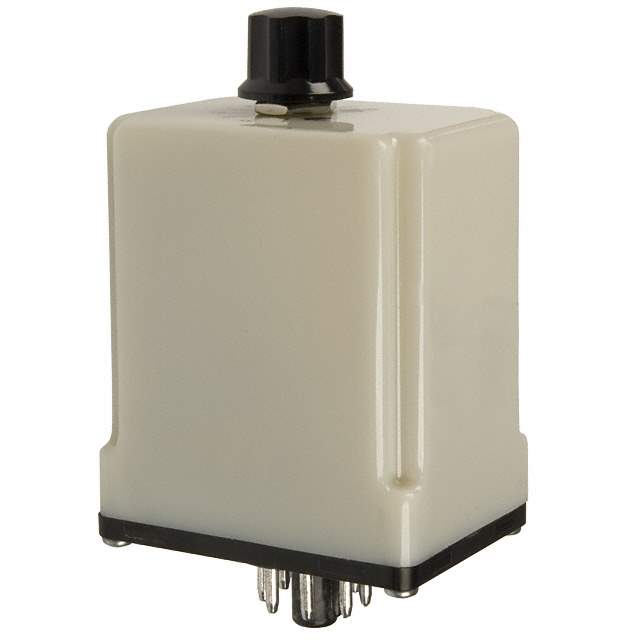

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr TE Connectivity Potter & Brumfield Relays
Series CB
Package Bulk
Product Status Obsolete
Mounting Type Socketable
Relay Type Mechanical Relay
Function Interval
Circuit DPDT (2 Form C)
Delay Time 0.1 Sec ~ 10 Sec
Contact Rating @ Voltage 10A @ 277VAC
Voltage - Supply 120VAC
Termination Style Plug In, 8 Pin (Octal)
Timing Adjustment Method Hand Dial
Timing Initiate Method Input Voltage
Base Product Number CB10
RoHS Status RoHS non-compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0080
Win Source Part Number 1314939-CB-1014B-79
Ultra Librarian 3D Model Ultra Librarian CB-1014B-79 CAD Model

Description

The CB-1014B-79 is an interval time delay relay from TE Connectivity Potter & Brumfield Relays.

  • Relay Type: DPDT (2 Form C)
  • Contact Rating: 10A @ 277VAC
  • Delay Time: 0.1 seconds to 10 seconds
  • Adjustment: Hand Dial
  • Timing Initiate Method: Input Voltage
  • Voltage Supply: 120VAC
  • Mounting: 8-Pin (Octal) Plug-in Socket
  • Packaging: Bulk
  • Status: Obsolete
  • RoHS Compliant: Non-Compliant
